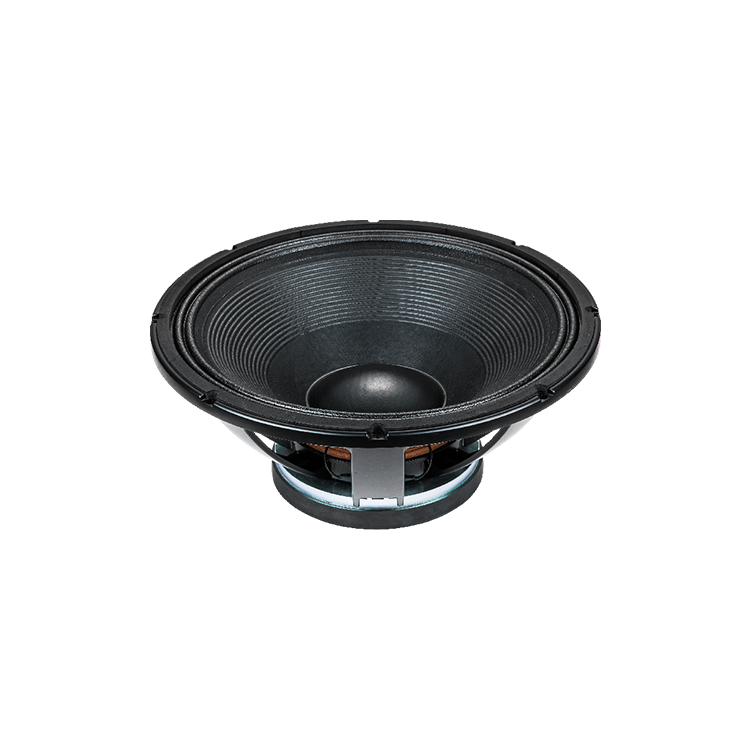

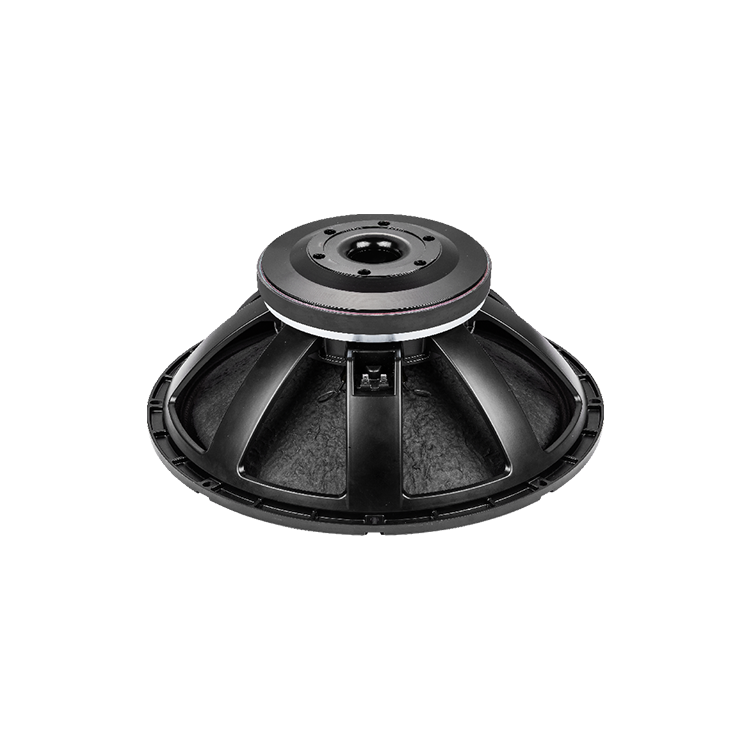

W-21-015A-8-127
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 549mm | Depth： | 230mm | |
| Bolt circle diameter： | 529mm | Flange and Gasket： | 20mm | |
| Baffle cutout diameter： | 509mm | Net weight： | 21.4kg | |
| Shipping box (single carton box)： | 590x590x290mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 21Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.6Ω | Winding depth： | 30mm | |
| Nominal power handling ： | 1400W | T yoke： | 23mm | |
| 2800W | Plate： | 14mm | ||
| Sensitivity (1W/1m)： | 96± 2dB | Magnet： | 280x140x25(200OZ)mm | |
| Frequency range (-10dB max)： | 30-1500 Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 127mm |
THIELE & SMALL PARAMETERS
| Fo： | 30Hz | Cms： | 91.96u M/N | Qms： | 9.31 | No： | 0.0272 | |||
| Revc： | 5.6Ω | Mmd： | 265.05m Kg | Qes： | 0.36 | Xmax： | ±8mm | |||
| Sd： | 169.82m㎡ | Mms： | 305.29g | Qts： | 0.34 | |||||
| Vas： | 376.6L | Bl： | 29.83N/A | Levc： | 1.253m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
