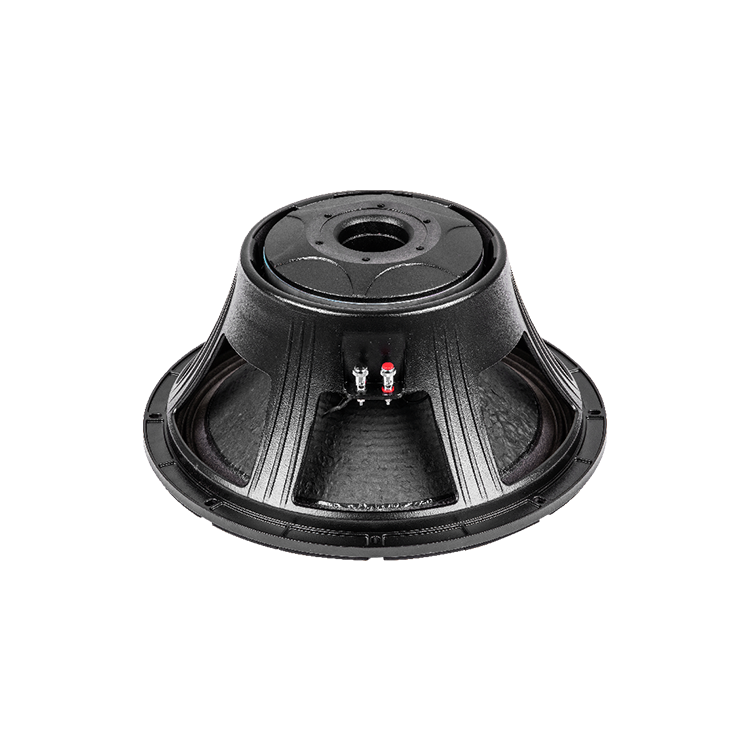

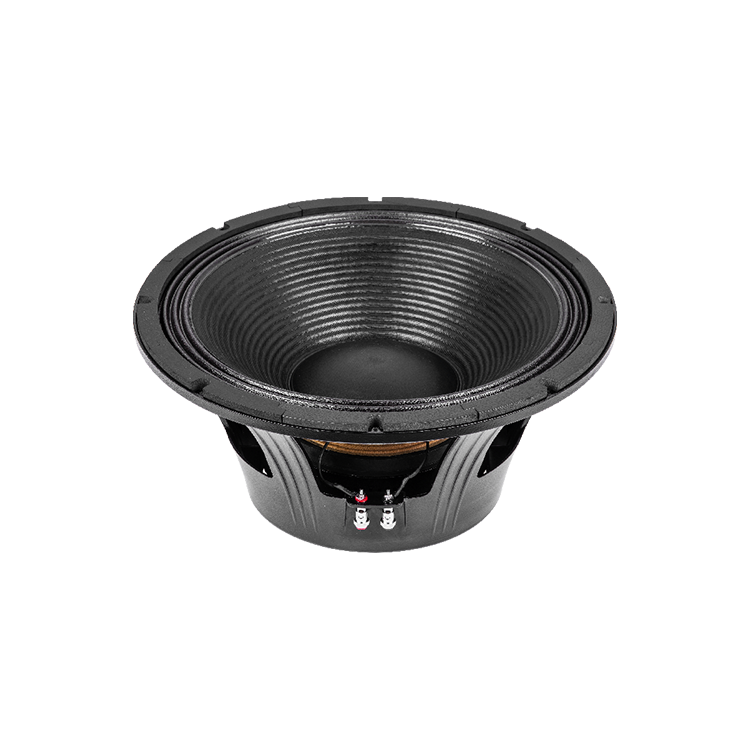

W-18-298A-8-114
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 475mm | Depth： | 230mm | |
| Bolt circle diameter： | 450mm | Flange and Gasket： | 18mm | |
| Baffle cutout diameter： | 430mm | Net weight： | 14.1kg | |
| Shipping box (single carton box)： | 510x510x275mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 18Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5Ω | Winding depth： | 25mm | |
| Nominal power handling ： | 1000W | T yoke： | 20mm | |
| 2000W | Plate ： | 15mm | ||
| Sensitivity (1W/1m)： | 96± 2dB | Magnet： | 220x127x25(120OZ)mm | |
| Frequency range (-10dB max)： | 43-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 114mm |
THIELE & SMALL PARAMETERS
| Fo： | 43Hz | Cms： | 51.54u M/N | Qms： | 11.71 | No： | 0.014 | |||
| Revc： | 5.2Ω | Mmd： | 229.87m Kg | Qes： | 0.64 | Xmax： | ±6.5mm | |||
| Sd： | 122.54m㎡ | Mms： | 254.53g | Qts： | 0.6 | |||||
| Vas： | 109.91L | Bl： | 23.89N/A | Levc： | 1.09m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
