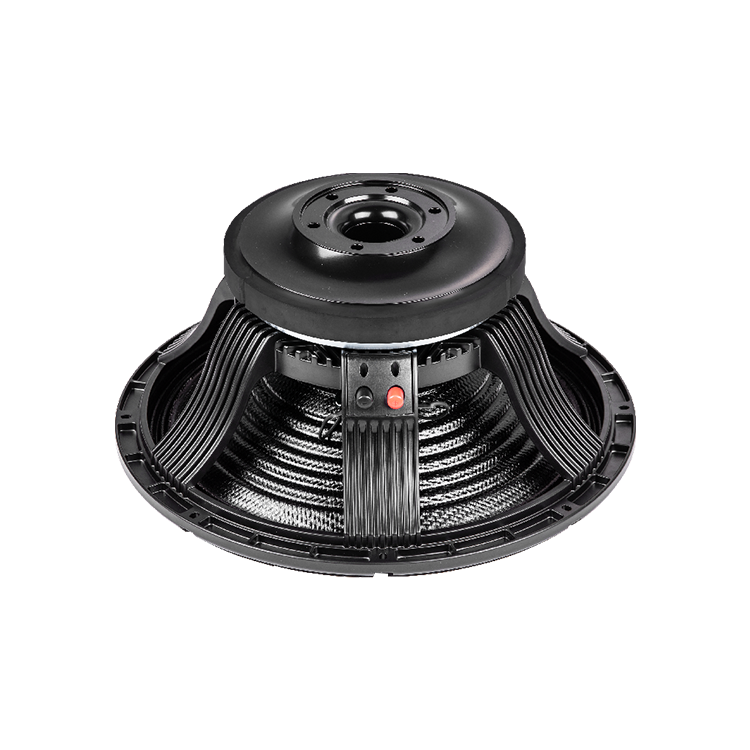

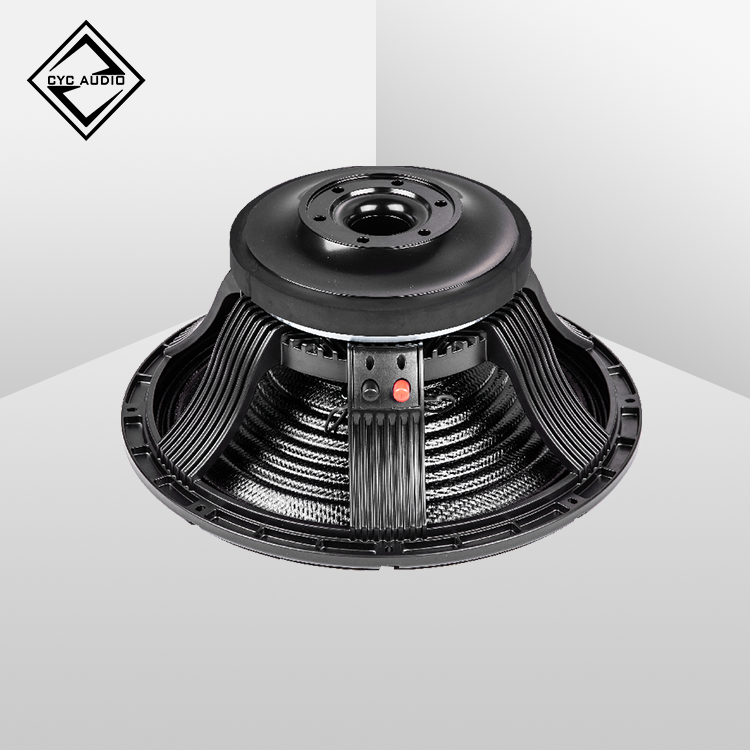

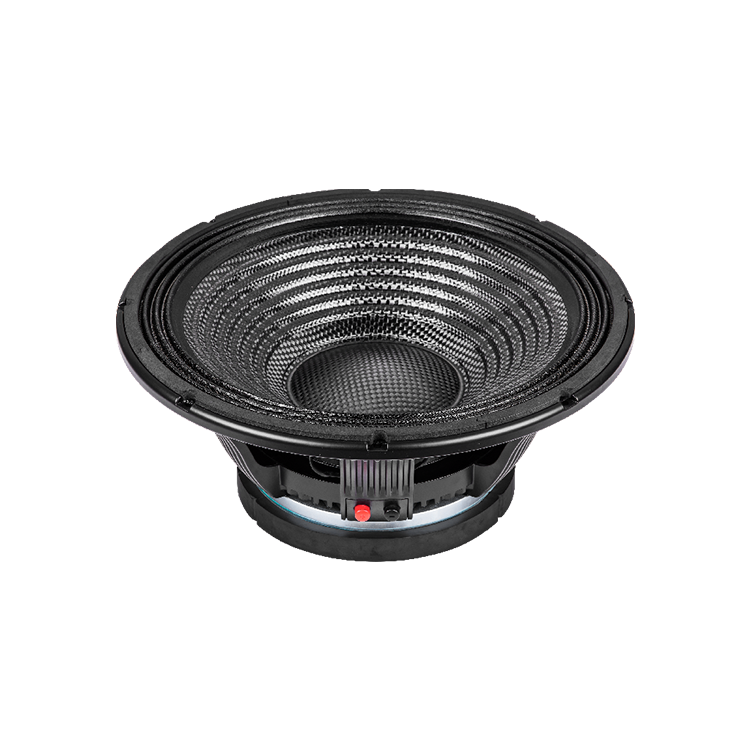

W-18-296A-8-114

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-18-296A-8-114

W-18-296A-8-114

800Watt Nominal Power Handing

100mm Voice coil diameter

31-2000HZ Frequency Range

97dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 465mm Depth: 187mm
    Bolt circle diameter: 442.7mm Flange and Gasket: 20mm
    Baffle cutout diameter: 424mm Net weight: 12.3kg
    Shipping box (single carton box): 510x510x275mm

    ELECTRICAL SPECIFICATIONS

    Nominal diameter: 18Inch Voice coil material: Inside/Outside 1 layerCu
    Nominal impedance: Former material: BAF
    DC resistance: 5.3Ω Winding depth: 20mm
    Nominal power handling : 800W T yoke: 18mm
    Continuous power handling: 1600W Plate: 10mm
    Sensitivity (1W/1m): 97±  2dB Magnet: 220*110*25(125OZ)
    Frequency range (-10dB max): 31-2000Hz Basket: Cast aluminium
    Voice coil diameter: 100mm

    THIELE & SMALL PARAMETERS

    Fo: 31Hz Cms: 132.97u M/N Qms: 10.22 No: 0.0232
    Revc: 5.3Ω Mmd: 163.1m Kg Qes: 0.39 Xmax: ±5mm
    Sd: 125.66m㎡ Mms: 188.71g Qts: 0.38
    Vas: 298.18L Bl: 22.38N/A Levc: 963.219m H




    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
