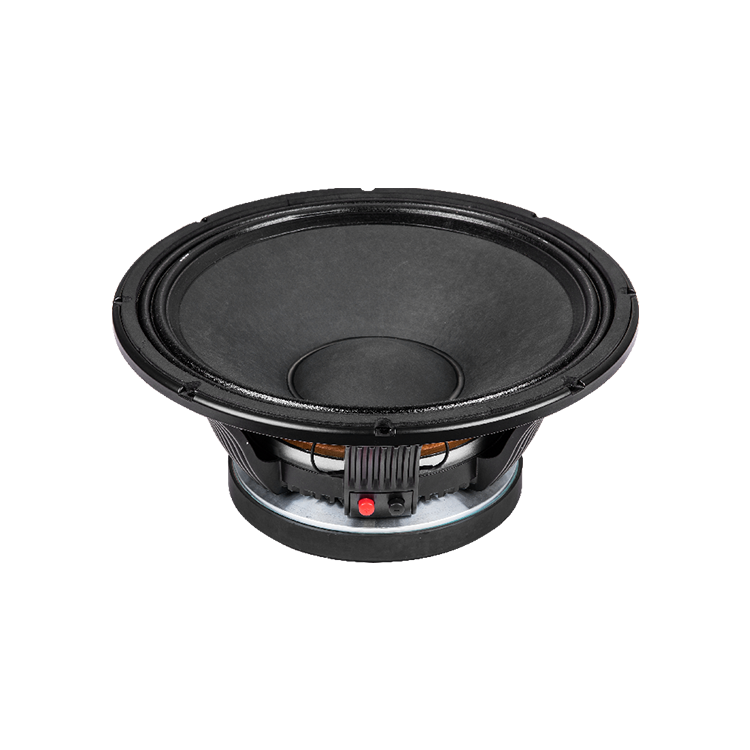

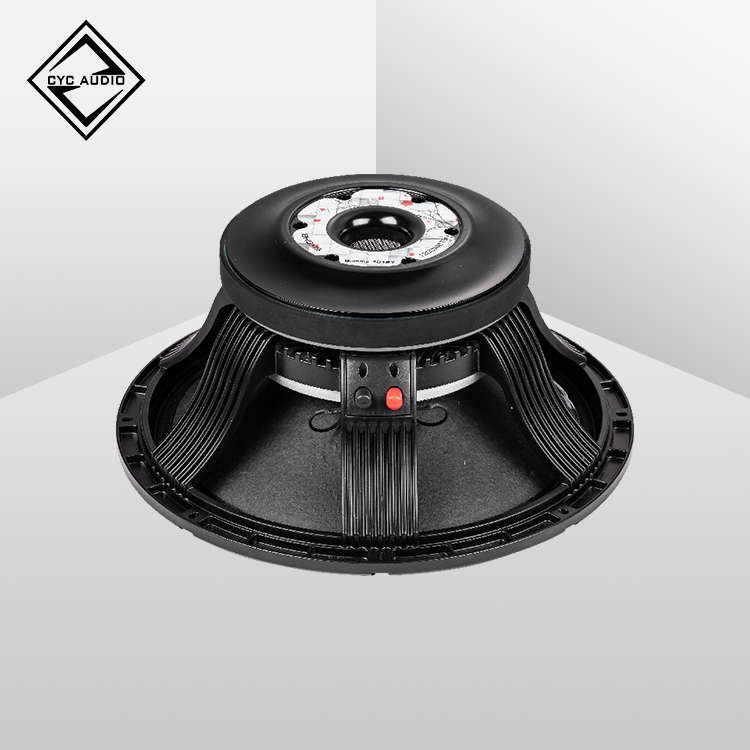

W-18-268A-8-127
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 465mm | Depth： | 193mm | |
| Bolt circle diameter： | 442.7mm | Flange and Gasket： | 20mm | |
| Baffle cutout diameter： | 423.8mm | Net weight： | 15.4kg | |
| Shipping box (single carton box)： | 500x500x270mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 18Inch | Voice coil material： | Inside/Outside 1 layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.6Ω | Winding depth ： | 28mm | |
| Nominal power handling ： | 1100W | T yoke： | 20mm | |
| Continuous power handling： | 2200W | Plate ： | 14mm | |
| Sensitivity (1W/1m) ： | 97± 2dB | Magnet： | 250*140*25(145OZ) | |
| Frequency range (-10dB max)： | 35-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 114.5mm | Midrange & Tweeter： |
THIELE & SMALL PARAMETERS
| Fo： | 35Hz | Cms： | 112.4u M/N | Qms： | 9.56 | No： | 0.0191 | |||
| Revc： | 5.6Ω | Mmd： | 159.1m Kg | Qes： | 0.52 | Xmax： | ±6mm | |||
| Sd： | 122.54m㎡ | Mms： | 183.77g | Qts： | 0.49 | |||||
| Vas： | 239.68L | Bl： | 20.85N/A | Levc： | 1.334m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
