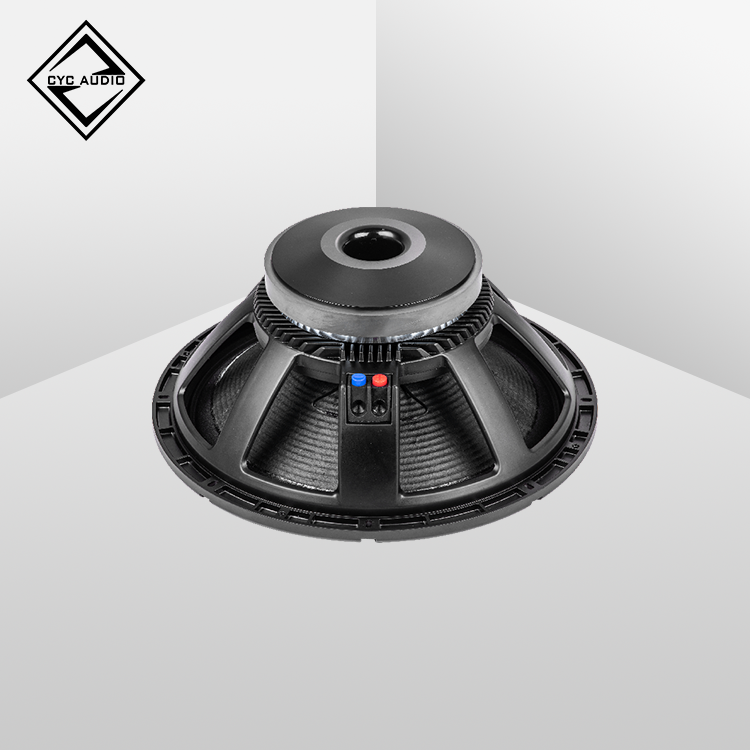

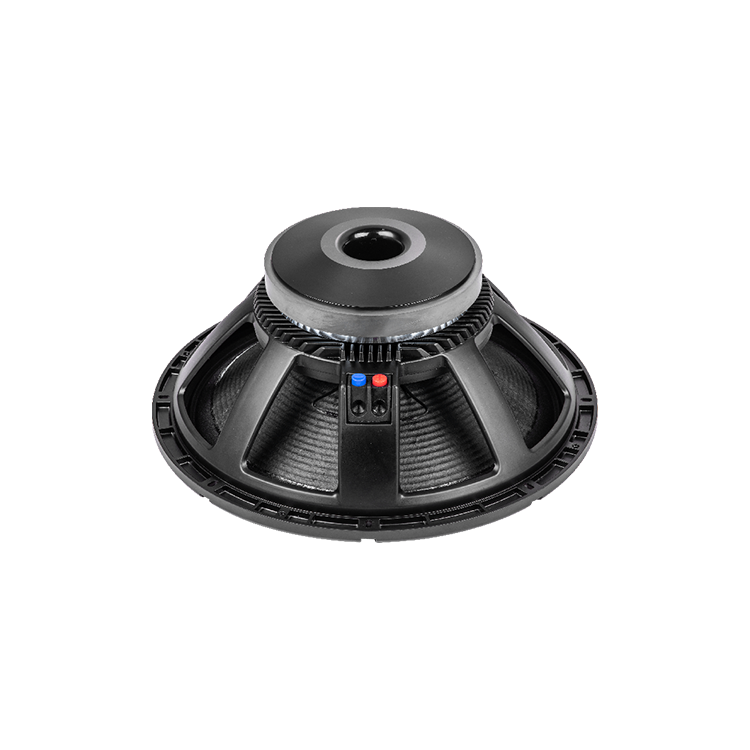

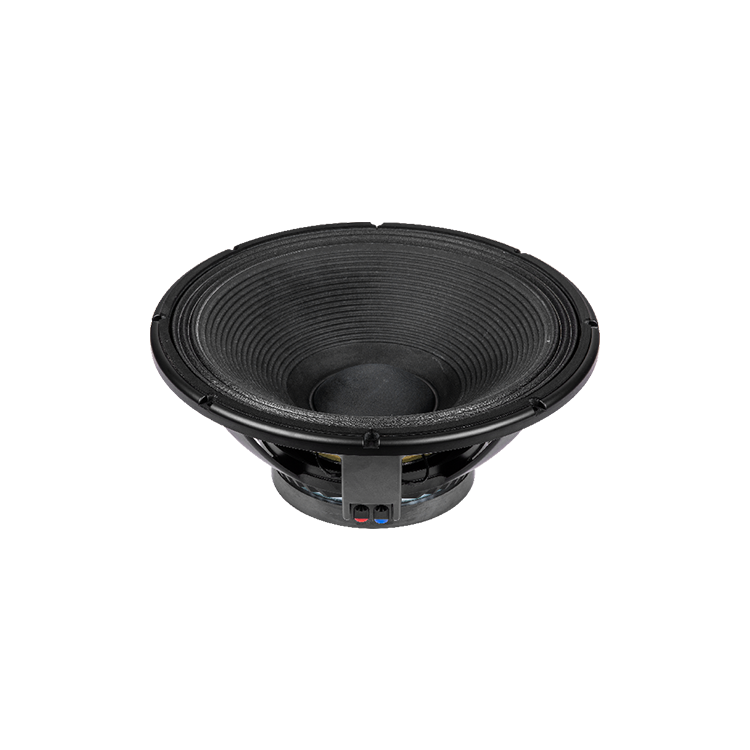

W-18-241A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 465mm | Depth： | 188mm | |
| Bolt circle diameter： | 445mm | Flange and Gasket： | 20mm | |
| Baffle cutout diameter： | 420mm | Net weight： | 12.8kg | |
| Shipping box (single carton box)： | 500x500x230mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 18Inch | Voice coil material： | Inside/Outside 1 layercu | |
| Nominal impedance： | 8Ω | Former material： | GF | |
| DC resistance： | 4.9Ω | Winding depth： | 24mm | |
| Nominal power handling ： | 1000W | T yoke： | 22mm | |
| Continuous power handling： | 2000W | Plate ： | 12mm | |
| Sensitivity (1W/1m) ： | 98± 2dB | Magnet： | 220*110*25(125OZ) | |
| Frequency range (-10dB max)： | 30-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 98mm | Midrange & Tweeter： |
THIELE & SMALL PARAMETERS
| Fo： | 32Hz | Cms： | 178.6u M/N | Qms： | 4.91 | No： | 0.0424 | |||
| Revc： | 4.9Ω | Mmd： | 120.4m Kg | Qes： | 0.26 | Xmax： | ±6mm | |||
| Sd： | 122.54m㎡ | Mms： | 145.6g | Qts： | 0.25 | |||||
| Vas： | 380.84L | Bl： | 22.9N/A | Levc： | 1.085m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
