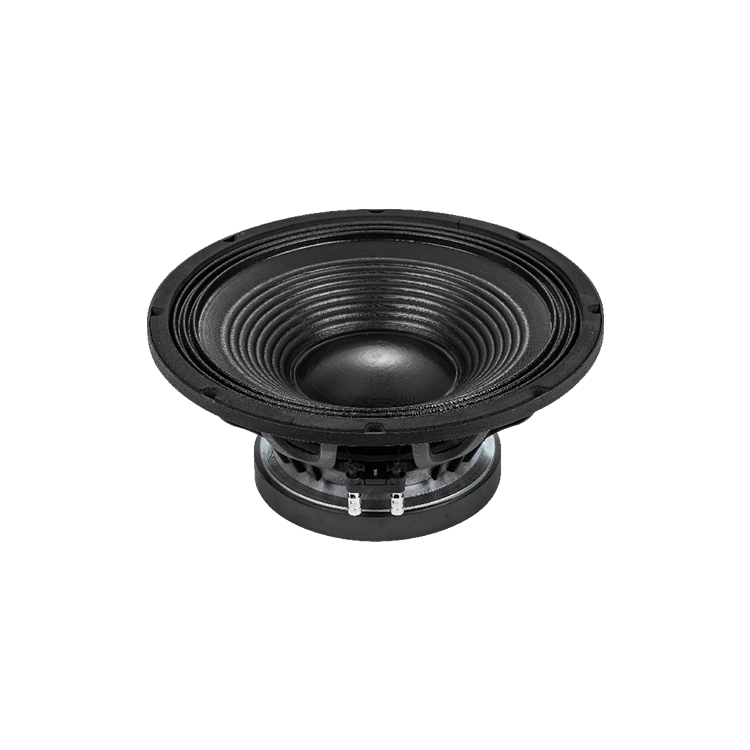

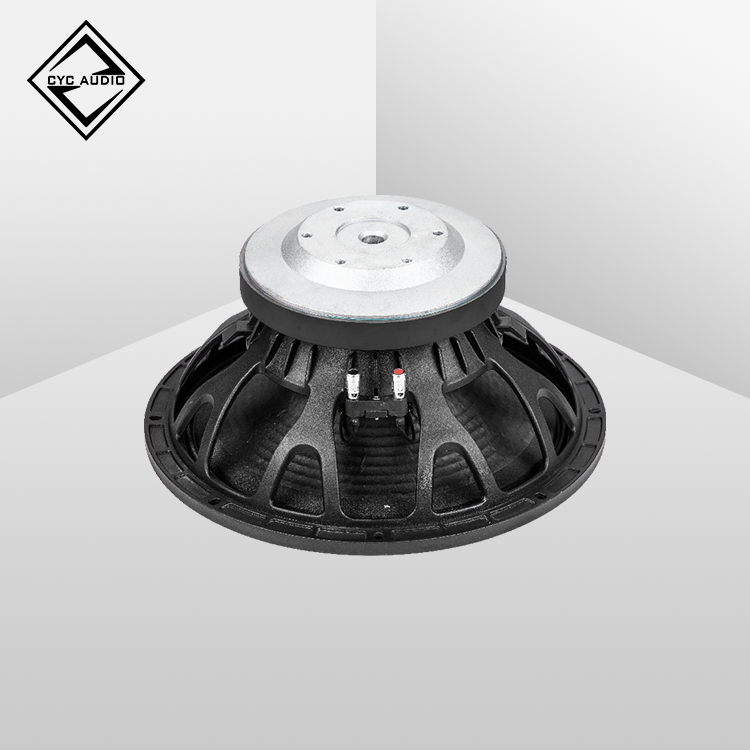

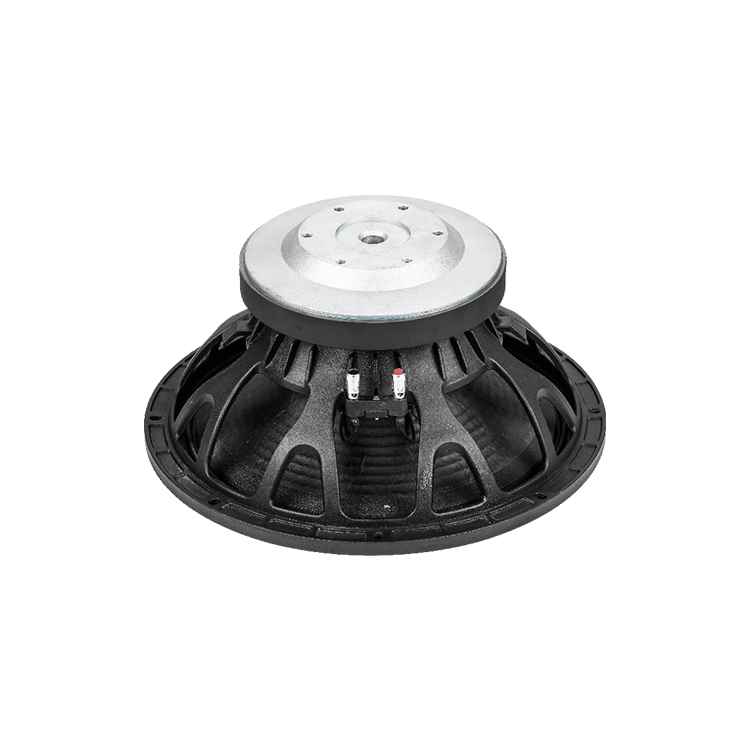

W-18-238A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 461mm | Depth： | 198mm | |
| Bolt circle diameter： | 441mm | Flange and Gasket： | 15mm | |
| Baffle cutout diameter： | 421mm | Net weight： | 12.2kg | |
| Shipping box (single carton box)： | 500x500x275mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 18Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.6Ω | Winding depth： | 28mm | |
| Nominal power handling： | 800W | T yoke： | 22mm | |
| 1600W | Plate： | 12mm | ||
| Sensitivity (1W/1m) ： | 97± 2dB | Magnet： | 220x110x25(125OZ)mm | |
| Frequency range (-10dB max)： | 35-2500Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 35Hz | Cms： | 123.38u M/N | Qms： | 8.82 | No： | 0.0303 | |||
| Revc： | 5.6Ω | Mmd： | 139.41m Kg | Qes： | 0.37 | Xmax： | ±6.5mm | |||
| Sd： | 122.54m㎡ | Mms： | 164.07g | Qts： | 0.35 | |||||
| Vas： | 236.09L | Bl： | 23.45N/A | Levc： | 1.115m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
