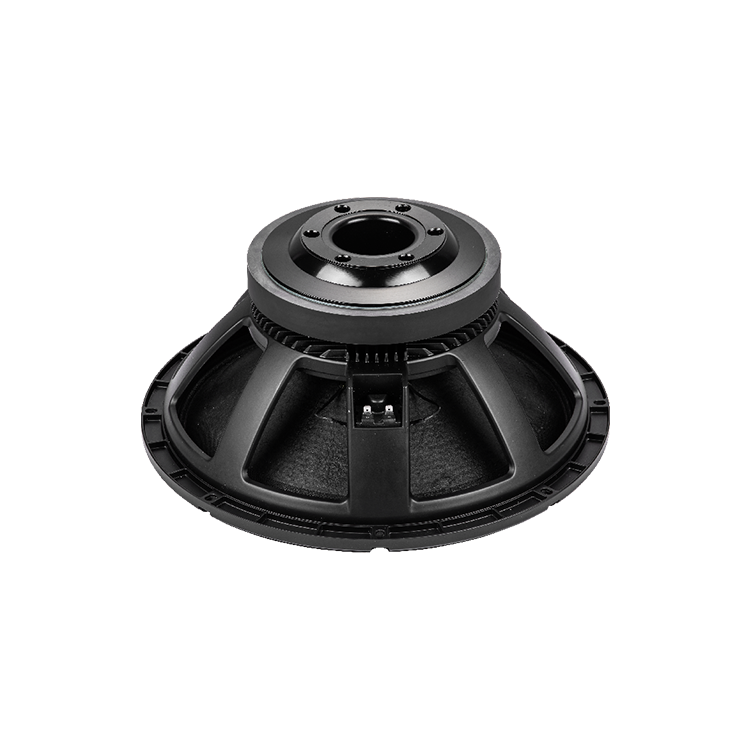

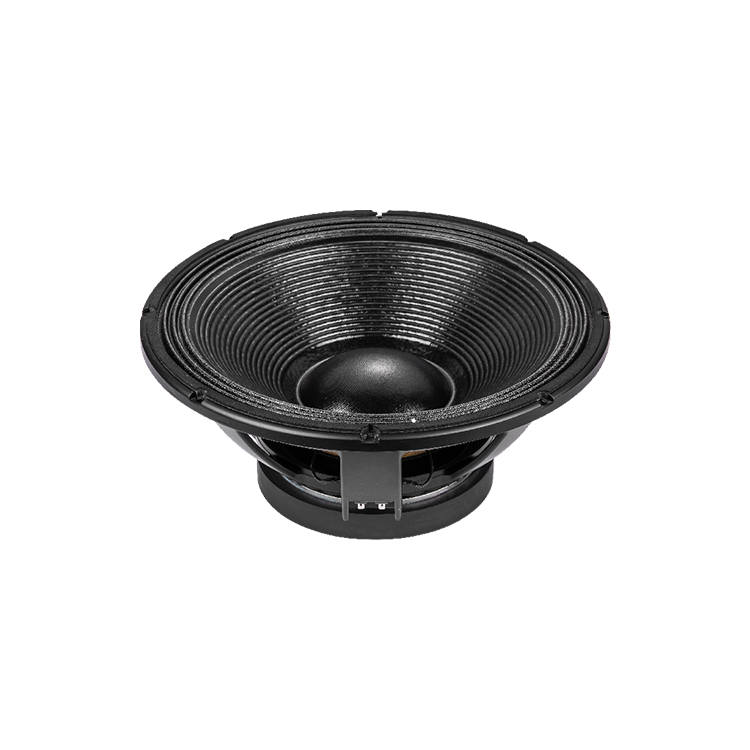

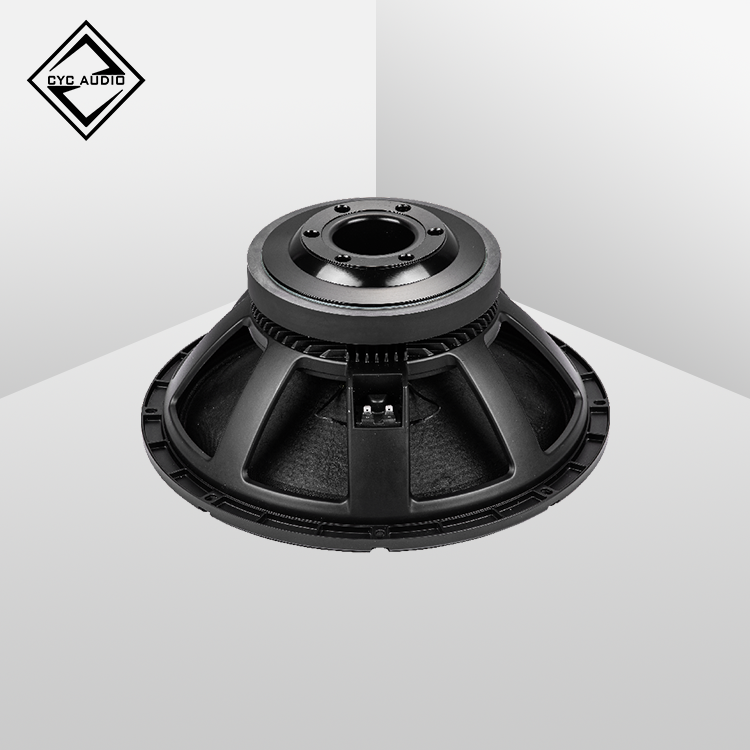

W-18-225A-8-114
Description
MECHANICAL SPECIFICATIONS
| Overall diameter | 465mm | Depth | 188mm | |
| Bolt circle diameter | 445mm | Flange and Gasket | 18mm | |
| Baffle cutout diameter | 420mm | Net weight | 14.8kg | |
| Shipping box (single carton box) | 500x500x275mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 18Inch | Voice coil material ： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material ： | BAF | |
| DC resistance： | 5.4Ω | Winding depth ： | 34mm | |
| Nominal power handling ： | 1200W | T yoke： | 23mm | |
| 2400W | Plate ： | 15mm | ||
| Sensitivity (1W/1m) ： | 96.5± 2dB | Magnet： | 245x122x30(185OZ)mm | |
| Frequency range (-10dB max)： | 36-1500Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 114.5mm |
THIELE & SMALL PARAMETERS
| Fo： | 36Hz | Cms： | 96.2u M/N | Qms： | 4.94 | No： | 0.0241 | |||
| Revc： | 5.4Ω | Mmd： | 176.5m Kg | Qes： | 0.38 | Xmax： | ±9.5mm | |||
| Sd： | 122.54m㎡ | Mms： | 201.2g | Qts： | 0.36 | |||||
| Vas： | 205.17L | Bl： | 25.2N/A | Levc： | 1.935m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
