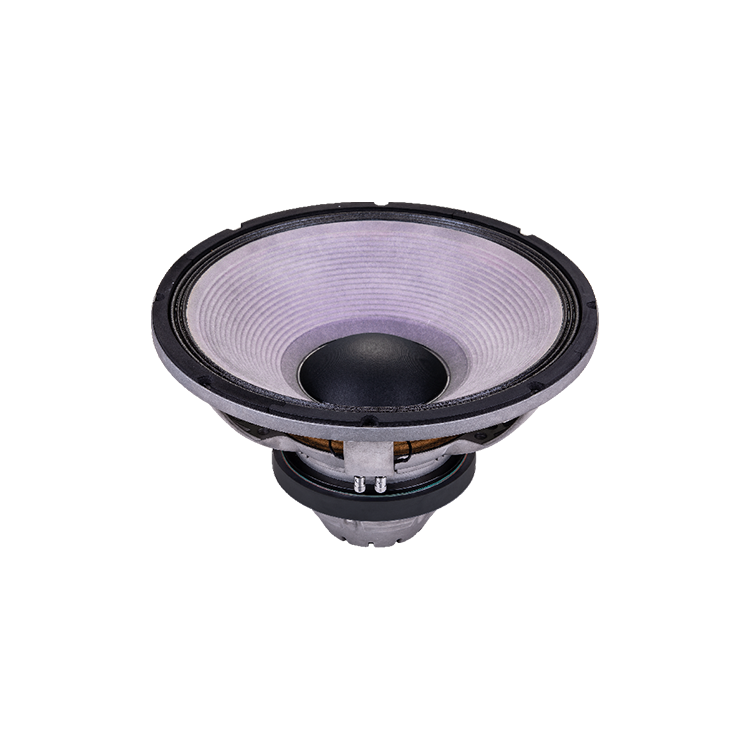

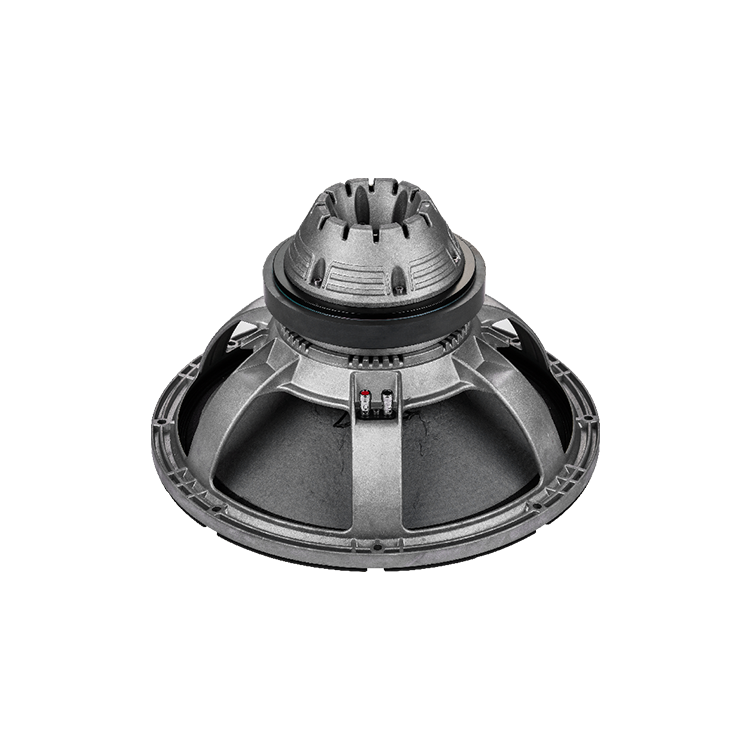

W-18-217A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 462mm | Depth： | 255mm | |
| Bolt circle diameter： | 440mm | Flange and Gasket： | 22mm | |
| Baffle cutout diameter： | 414mm | Net weight： | 13.4kg | |
| Shipping box (single carton box)： | 500x500x285mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 18Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material ： | BAF | |
| DC resistance： | 4.8Ω | Winding depth ： | 32+32mm | |
| Nominal power handling ： | 1000W | T yoke： | 22mm | |
| 2000W | Plate ： | 22mm | ||
| Sensitivity (1W/1m) ： | 96± 2dB | Magnet： | 220x110x25(125OZ)mm | |
| Frequency range (-10dB max)： | 35-2000Hz | Basket： | Cast aluminiu | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 35Hz | Cms： | 89.1u M/N | Qms： | 8.2 | No： | 0.0177 | |||
| Revc： | 4.8Ω | Mmd： | 201.3m Kg | Qes： | 0.5 | Xmax： | ±5mm | |||
| Sd： | 128.8m㎡ | Mms： | 227.9g | Qts： | 0.47 | |||||
| Vas： | 209.9L | Bl： | 21.9N/A | Levc： | 960.6m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
