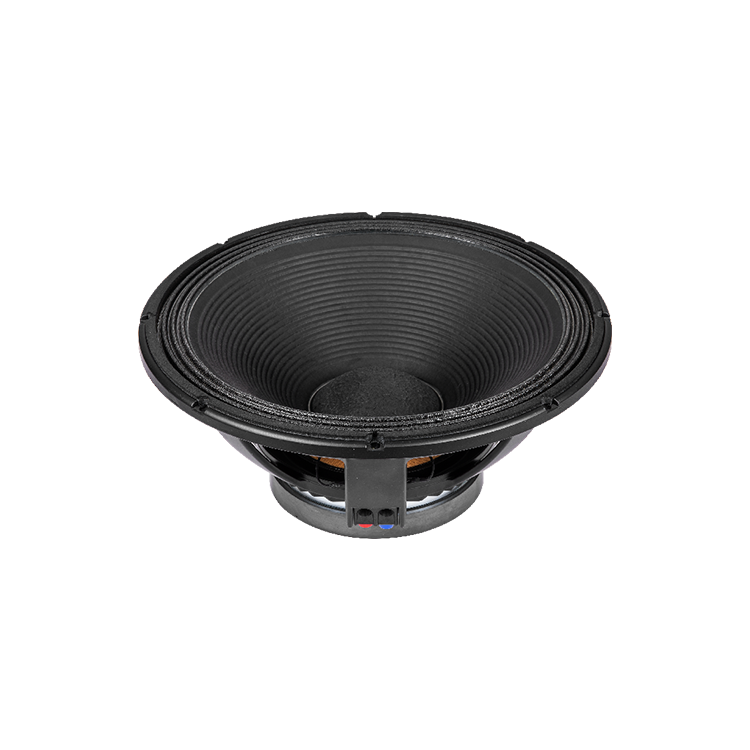

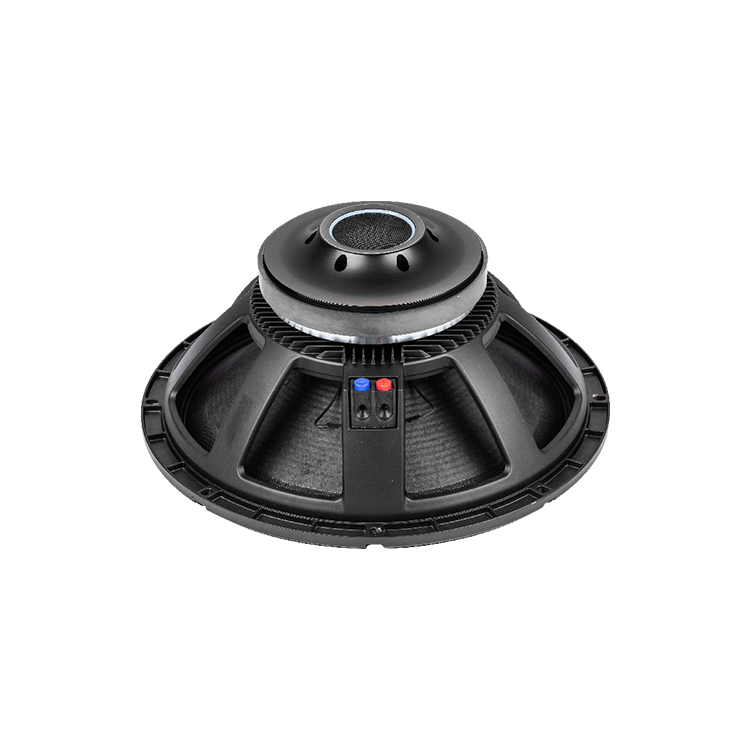

W-18-200A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 465mm | Depth： | 200mm | |
| Bolt circle diameter： | 445mm | Flange and Gasket： | 20mm | |
| Baffle cutout diameter： | 420mm | Net weight： | 12.9kg | |
| Shipping box (single carton box)： | 500x500x275mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 18Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | TIL | |
| DC resistance： | 5.6Ω | Winding depth： | 25mm | |
| Nominal power handling ： | 800W | T yoke： | 30mm | |
| 1600W | Plate ： | 14mm | ||
| Sensitivity (1W/1m) ： | 97± 2dB | Magnet： | 220x110x25(125OZ)mm | |
| Frequency range (-10dB max)： | 39-2200Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 39Hz | Cms： | 87.7u M/N | Qms： | 8.02 | No： | 0.0236 | |||
| Revc： | 5.6Ω | Mmd： | 161.53m Kg | Qes： | 0.46 | Xmax： | ±6.5mm | |||
| Sd： | 122.54m㎡ | Mms： | 186.2g | Qts： | 0.44 | |||||
| Vas： | 187.14L | Bl： | 23.5N/A | Levc： | 1.172m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
