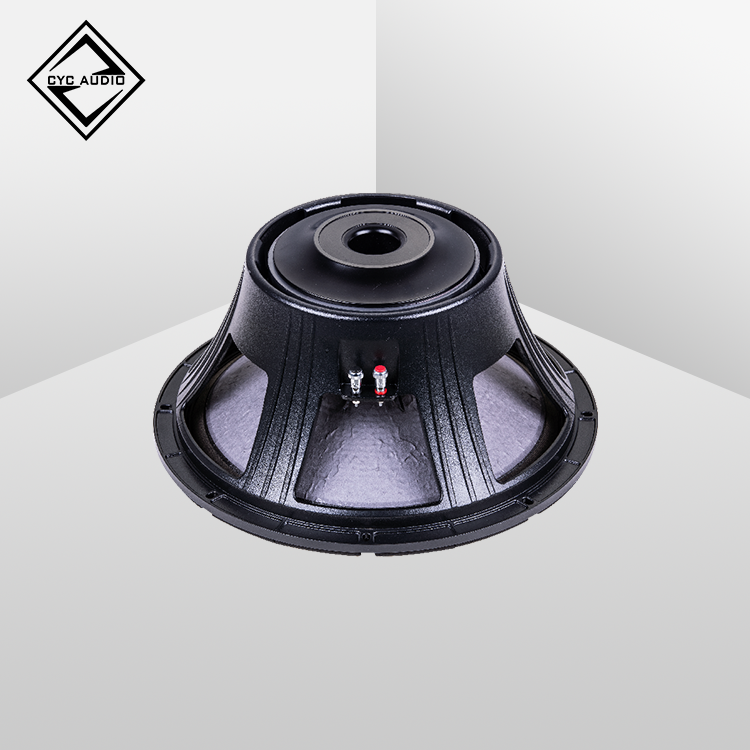

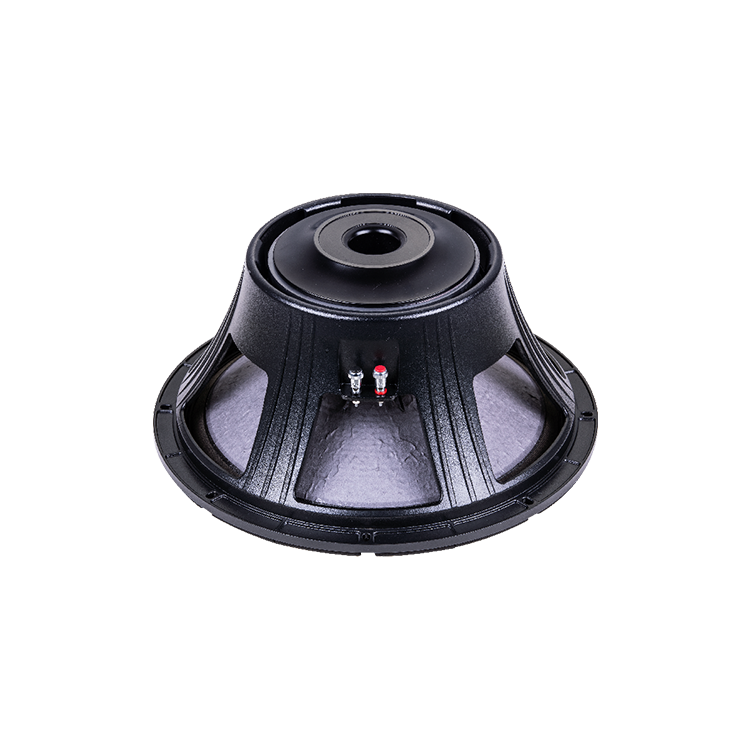

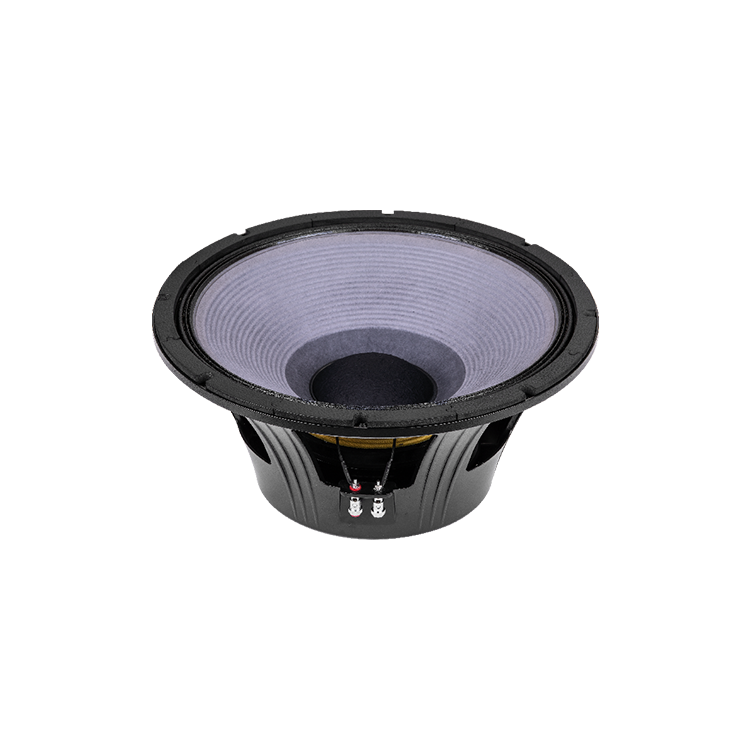

W-18-157A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 475mm | Depth： | 210mm | |
| Bolt circle diameter： | 450mm | Flange and Gasket： | 18mm | |
| Baffle cutout diameter： | 430mm | Net weight： | 13.5kg | |
| Shipping box (single carton box)： | 510x510x250mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 18Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | TIL | |
| DC resistance： | 5.6Ω | Winding depth： | 25mm | |
| Nominal power handling： | 1000W | T yoke： | 22mm | |
| 2000W | Plate： | 12mm | ||
| Sensitivity (1W/1m)： | 98± 2dB | Magnet： | 220X110X25(125oz)mm | |
| Frequency range (-10dB max)： | 30-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 30.29Hz | Cms： | 194.35u M/N | Qms： | 7.942 | No： | 0.0281 | |||
| Revc： | 5.6Ω | Mmd： | 117.18m Kg | Qes： | 0.4 | Xmax： | ±6.5mm | |||
| Sd： | 123.16m㎡ | Mms： | 142.04g | Qts： | 0.381 | |||||
| Vas： | 418.62L | Bl： | 19.45N/A | Levc： | 866m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
