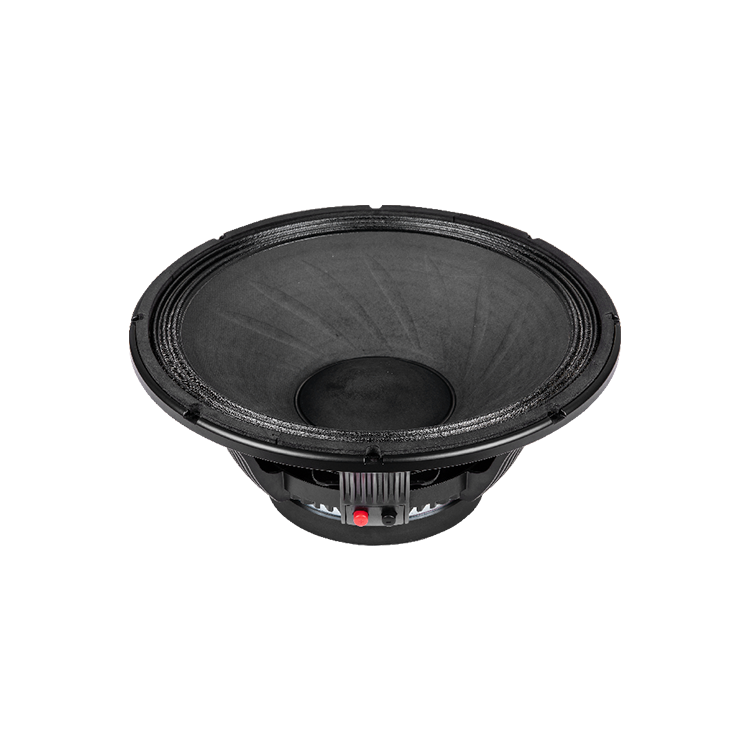

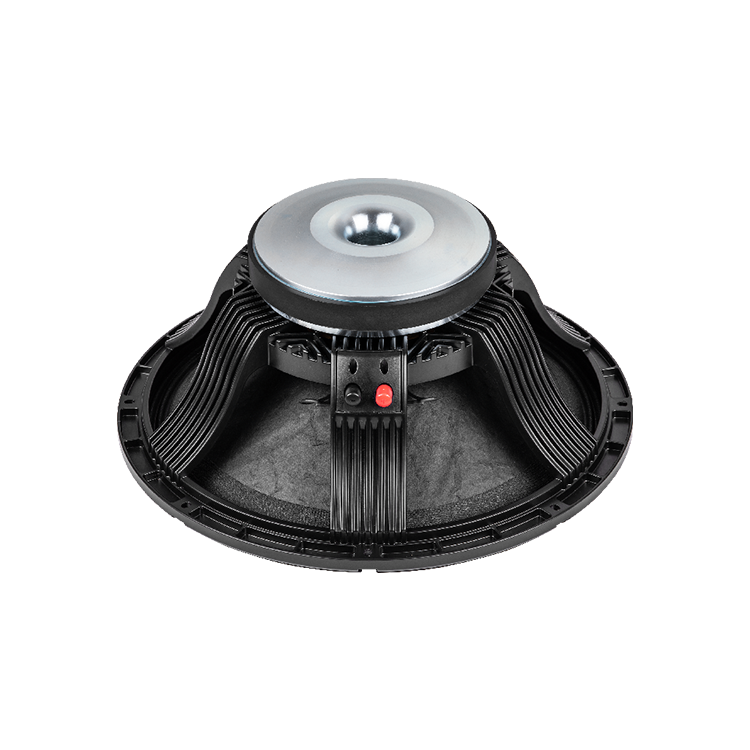

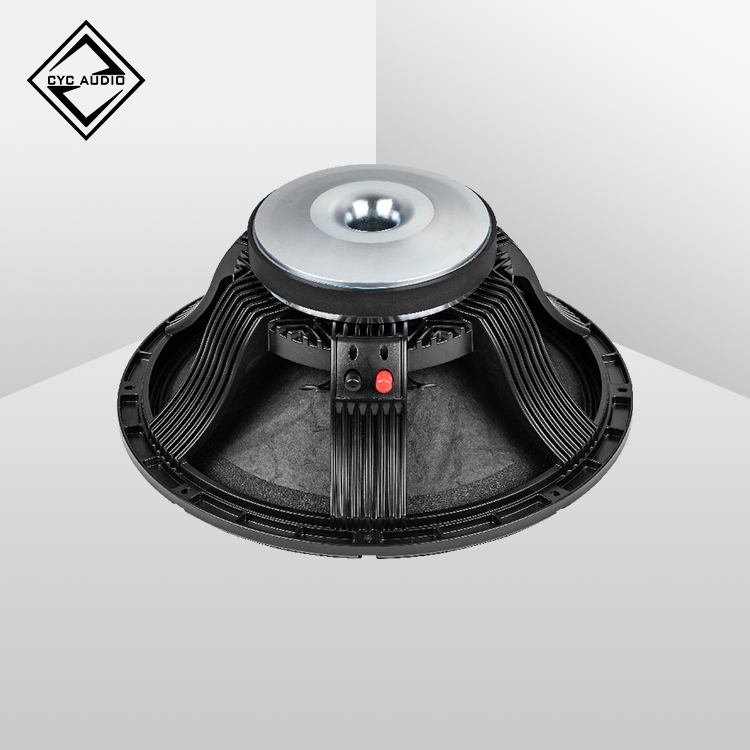

W-15-508A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 400.5mm | Depth | 165mm | |
| Bolt circle diameter： | 378mm | Flange and Gasket | 18mm | |
| Baffle cutout diameter： | 360mm | Net weight | 11.8kg | |
| Shipping box (single carton box)： | 430x430x255mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 15Inch | Voice coil material： | Inside/Outside 1 layerCu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.3Ω | Winding depth ： | 20mm | |
| Nominal power handling： | 600W | T yoke： | 18mm | |
| Continuous power handling： | 1200W | Plate ： | 10mm | |
| Sensitivity (1W/1m): | 97± 2dB | Magnet： | 220*110*25(125OZ) | |
| Frequency range (-10dB max)： | 43-3500Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 43Hz | Cms： | 105.54u M/N | Qms: | 9.31 | No: | 2.78% | |||
| Revc： | 5.3Ω | Mmd： | 109.03m Kg | Qes: | 0.36 | Xmax: | ±5mm | |||
| Sd： | 90.79m㎡ | Mms: | 124.76g | Qts: | 0.34 | |||||
| Vas： | 123.54L | Bl: | 22.41N/A | Levc: | 920.858m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
