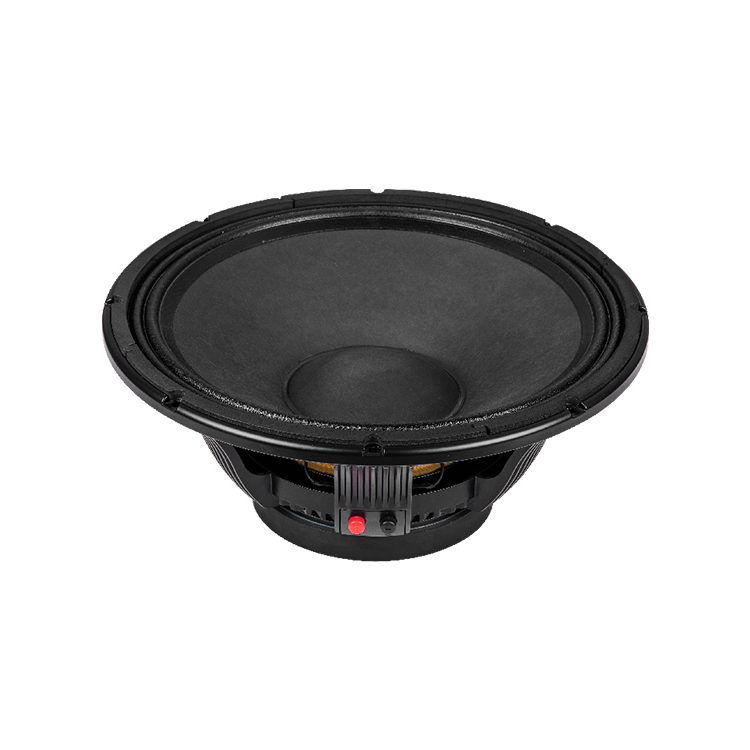

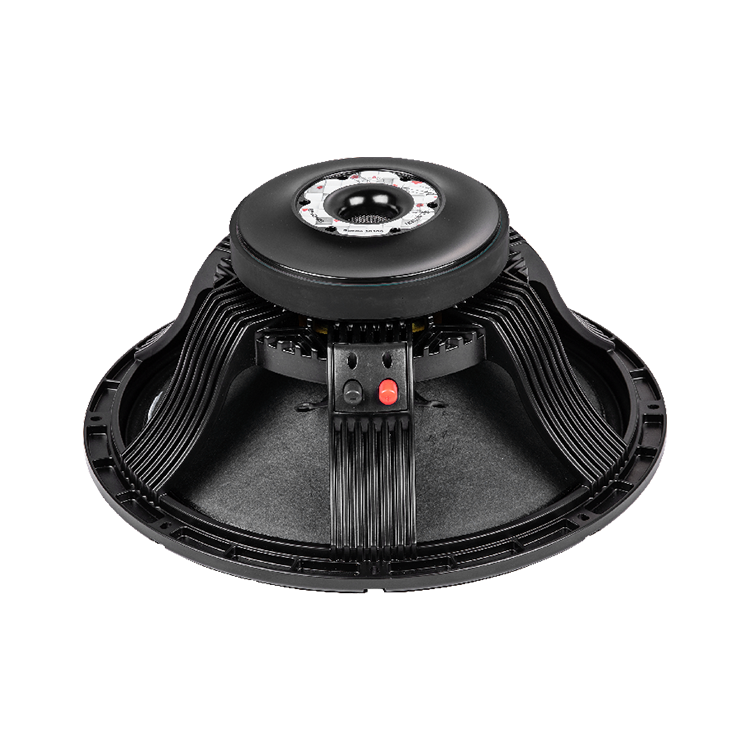

W-15-430A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 400.5mm | Depth: | 166mm | |
| Bolt circle diameter: | 378mm | Flange and Gasket: | 16mm | |
| Baffle cutout diameter: | 360mm | Net weight: | 11.5kg | |
| Shipping box (single carton box): | 430x430x250mm |
MECHANICAL SPECIFICATIONS
| Nominal diameter : | 15Inch | Voice coil material: | Inside/Outside 1 layercu | |
| Nominal impedance: | 8Ω | Former material: | TIL | |
| DC resistance: | 5.6Ω | Winding depth： | 18mm | |
| Nominal power handling: | 500W | T yoke: | 18mm | |
| Continuous power handling: | 1000W | Plate : | 12mm | |
| Sensitivity (1W/1m)： | 97.5± 2dB | Magnet: | 220*110*25(125OZ) | |
| Frequency range (-10dB max)： | 50-2800Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo: | 50Hz | Cms： | 71.62u M/N | Qms： | 5.84 | No： | 0.0267 | |||
| Revc: | 5.6Ω | Mmd: | 115.49m Kg | Qes： | 0.4 | Xmax： | ±5mm | |||
| Sd: | 88.14m㎡ | Mms: | 121.54g | Qts： | 0.37 | |||||
| Vas： | 79.01L | Bl: | 24.3N/A | Levc： | 1.011m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
