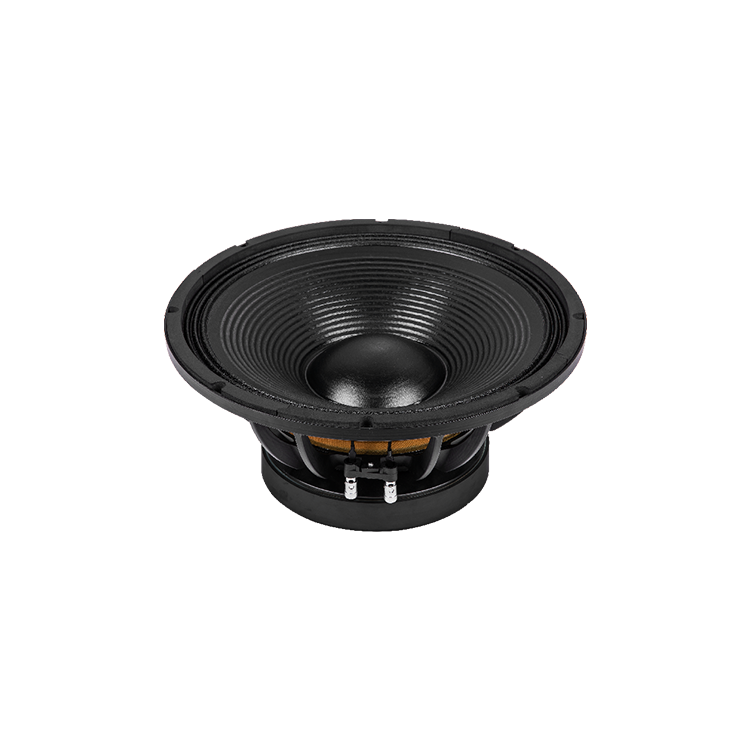

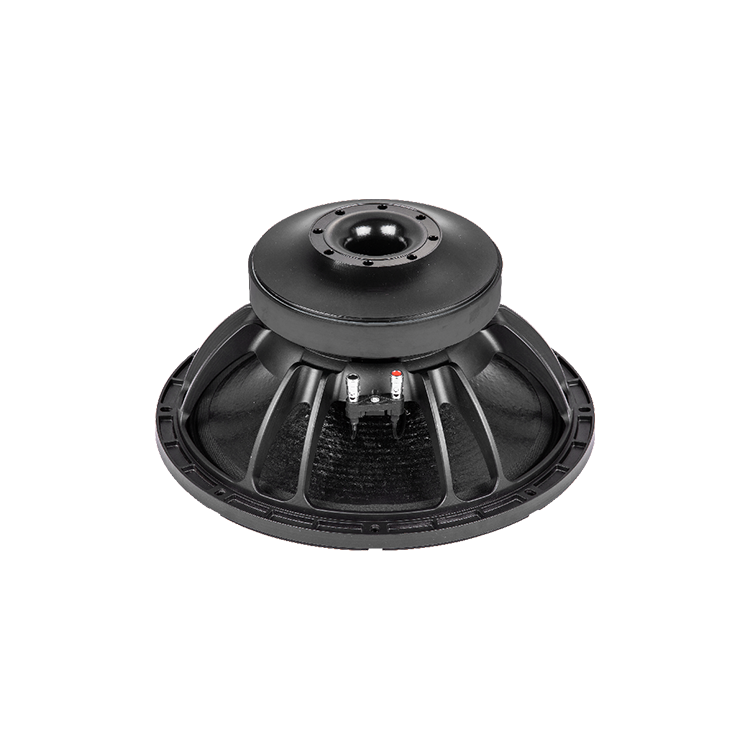

W-15-426A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 395mm | Depth： | 180mm | |
| Bolt circle diameter： | 375mm | Flange and Gasket： | 15mm | |
| Baffle cutout diameter： | 358mm | Net weight： | 13.7kg | |
| Shipping box (single carton box)： | 420x420x240mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 15Inch | Voice coil material： | Inside/Outside cu | |
| Nominal impedance： | 8Ω | Former material： | TIL | |
| DC resistance： | 5.6Ω | Winding depth： | 32mm | |
| Nominal power handling ： | 1200W | T yoke： | 28mm | |
| 2400W | Plate： | 15mm | ||
| Sensitivity (1W/1m)： | 96± 2dB | Magnet： | 152OZ | |
| Frequency range (-10dB max)： | 45-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 44.5Hz | Cms： | 79.62u M/N | Qms： | 8.35 | No： | 0.0225 | |||
| Revc： | 5.2Ω | Mmd： | 141.67m Kg | Qes： | 0.328 | Xmax： | ±8.5mm | |||
| Sd： | 85.53m㎡ | Mms： | 156.05g | Qts： | 0.316 | |||||
| Vas： | 82.7L | Bl： | 26.49N/A | Levc： | 1120m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
