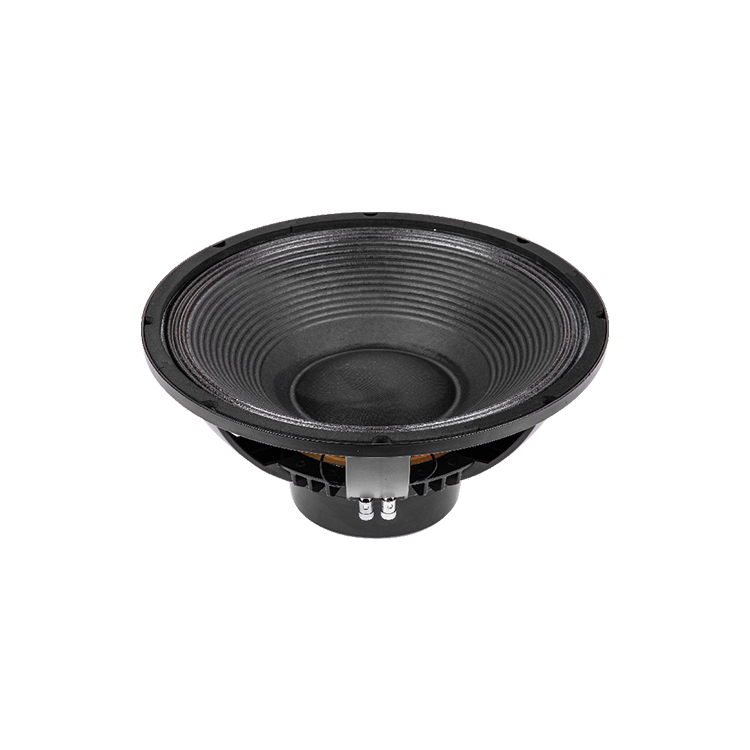

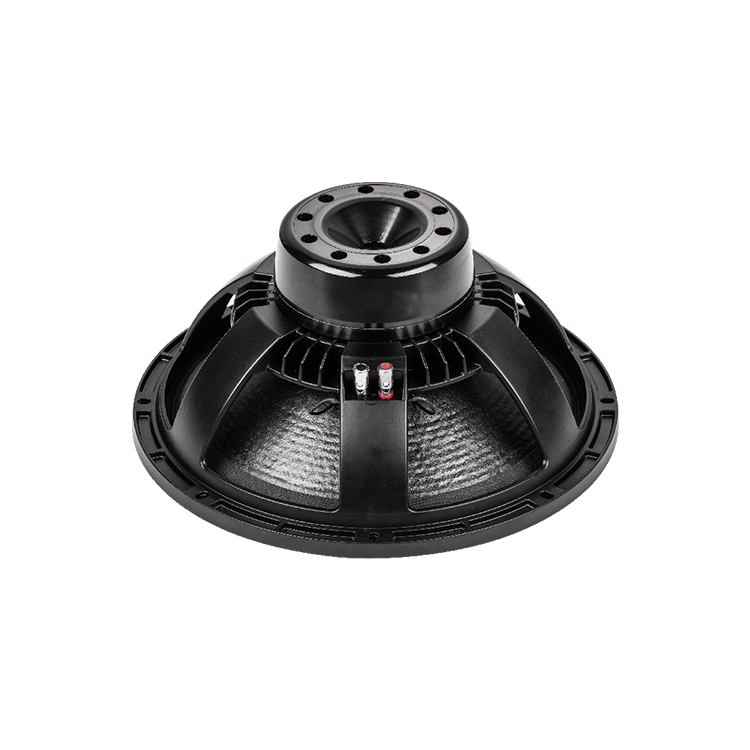

W-15-389A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 396mm | Depth： | 163mm | |
| Bolt circle diameter： | 376mm | Flange and Gasket： | 18mm | |
| Baffle cutout diameter： | 358mm | Net weight： | 8kg | |
| Shipping box (single carton box)： | 420x420x195mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 15Inch | Voice coil material： | Inside/Outside 1 layercu | |
| Nominal impedance： | 8Ω | Former material： | TIL | |
| DC resistance： | 5.2Ω | Winding depth ： | 25mm | |
| Nominal power handling ： | 800W | T yoke： | 22mm | |
| 1600W | Plate ： | 12mm | ||
| Sensitivity (1W/1m)： | 97± 2dB | Magnet： | NDFEB | |
| Frequency range (-10dB max)： | 45-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 45Hz | Cms： | 61.8u M/N | Qms： | 5.6 | No： | 0.032 | |||
| Revc： | 5.2Ω | Mmd： | 117.18m Kg | Qes： | 0.61 | Xmax： | ±6.5mm | |||
| Sd： | 122.5m㎡ | Mms： | 141.8g | Qts： | 0.55 | |||||
| Vas： | 131.8L | Bl： | 20.06N/A | Levc： | 964.43m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
