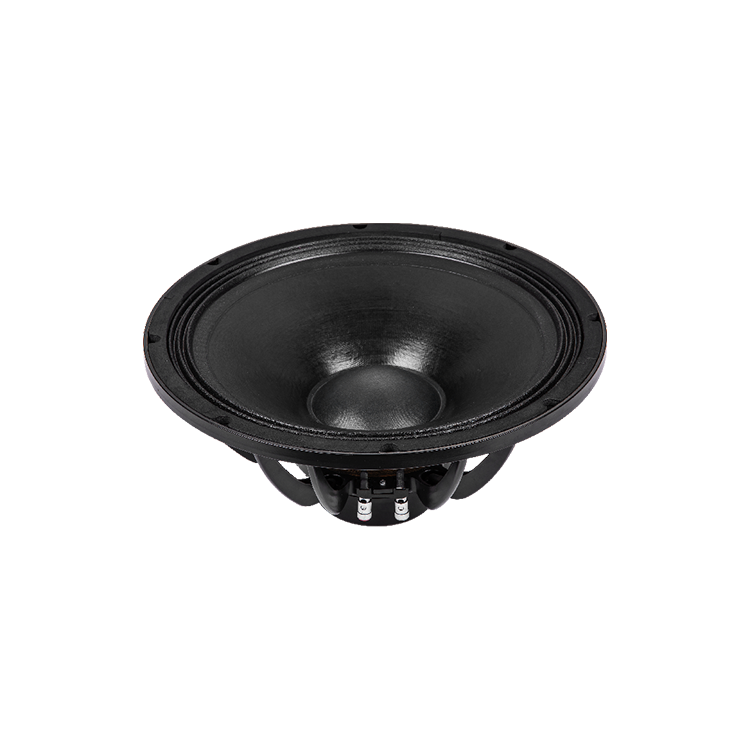

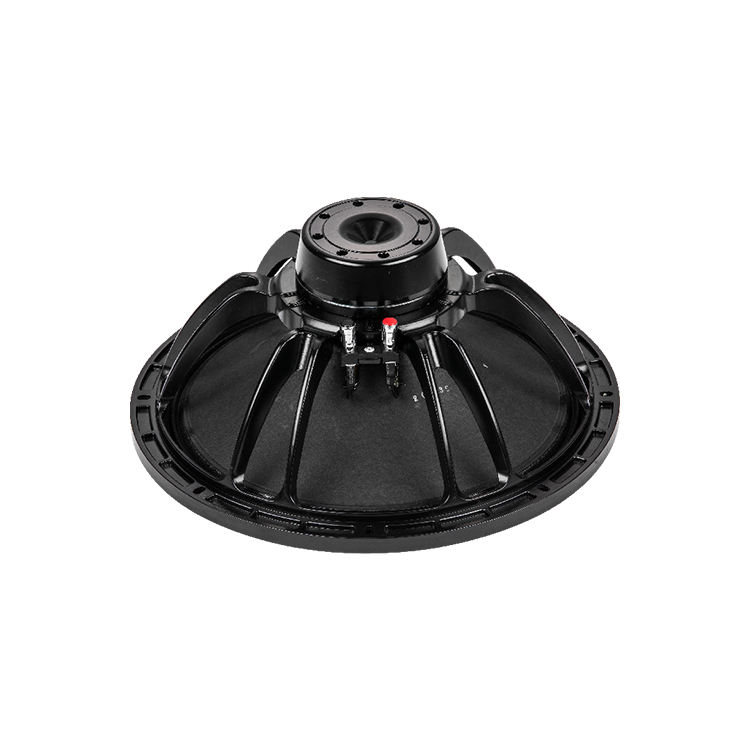

W-15-361A-8-75
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 394mm | Depth： | 163mm | |
| Bolt circle diameter： | 374mm | Flange and Gasket： | 18mm | |
| Baffle cutout diameter： | 358mm | Net weight： | 4.7kg | |
| Shipping box (single carton box)： | 420x420x190mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 15Inch | Voice coil material： | Inside Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | GAF | |
| DC resistance： | 5.6Ω | Winding depth ： | 16mm | |
| Nominal power handling： | 350W | T yoke： | 12mm | |
| Continuous power handling： | 700W | Plate： | 10mm | |
| Sensitivity (1W/1m)： | 99± 2dB | Magnet： | NDFEB | |
| Frequency range (-10dB max)： | 50-4000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 75mm | Midrange & Tweeter： |
THIELE & SMALL PARAMETERS
| Fo： | 48.24Hz | Cms： | 132.98u M/N | Qms： | 2.87 | No： | 0.0353 | |||
| Revc： | 5.6Ω | Mmd： | 67.45m Kg | Qes： | 0.41 | Xmax： | ±3mm | |||
| Sd： | 85.53m㎡ | Mms： | 81.85g | Qts： | 0.35 | |||||
| Vas： | 138.15L | Bl： | 17.33N/A | Levc： | 729.62m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
