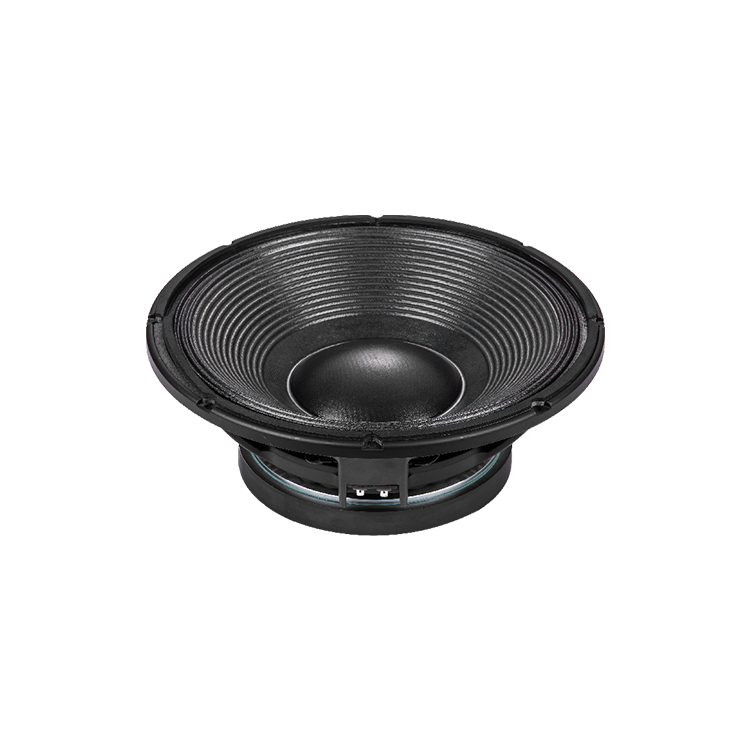

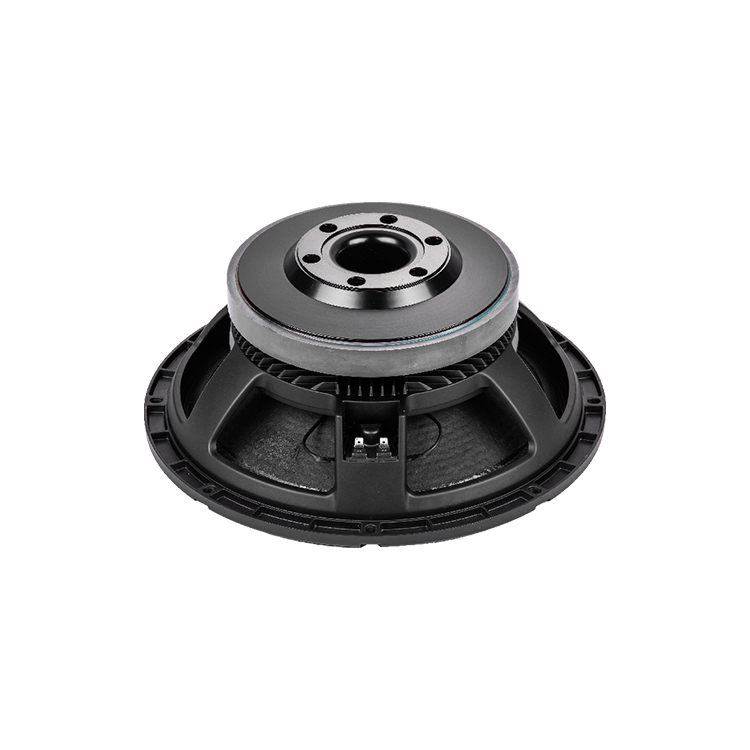

W-15-356A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 395mm | Depth： | 150mm | |
| Bolt circle diameter： | 374mm | Flange and Gasket： | 16mm | |
| Baffle cutout diameter： | 355mm | Net weight： | 12.5kg | |
| Shipping box (single carton box)： | 435x435x255mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 15Inch | Voice coil material： | Inside/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.5Ω | Winding depth： | 25mm | |
| Nominal power handling： | 600W | T yoke： | 23mm | |
| 1200W | Plate： | 12mm | ||
| Sensitivity (1W/1m)： | 97± 2dB | Magnet： | 245x122x25(155OZ)mm | |
| Frequency range (-10dB max)： | 60-2000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 60Hz | Cms： | 56.6u M/N | Qms： | 6.8 | No： | 0.0302 | |||
| Revc： | 5.5Ω | Mmd： | 107.63m Kg | Qes： | 0.44 | Xmax： | ±6.5mm | |||
| Sd： | 88.14m㎡ | Mms： | 122.6g | Qts： | 0.41 | |||||
| Vas： | 62.9L | Bl： | 24.1N/A | Levc： | 1.21m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
