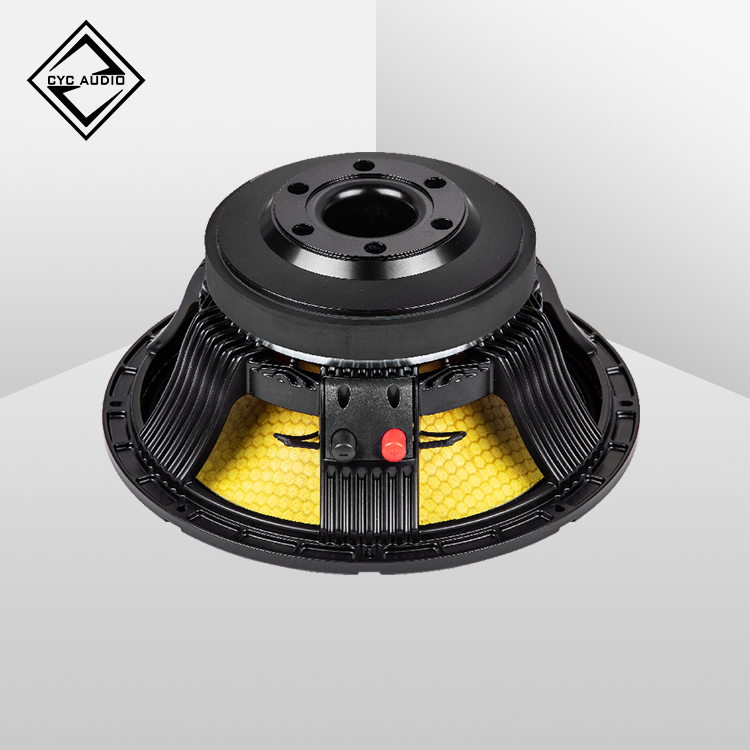

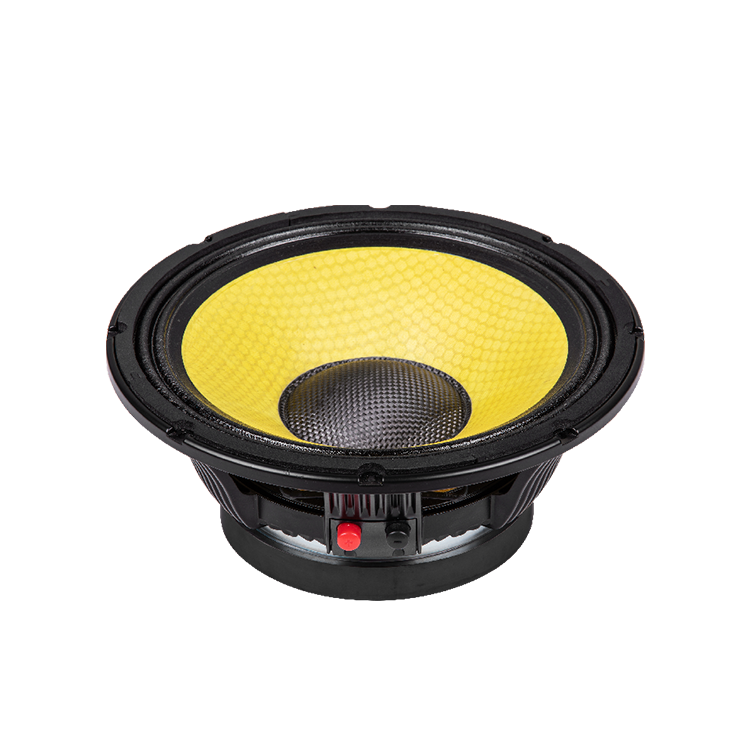

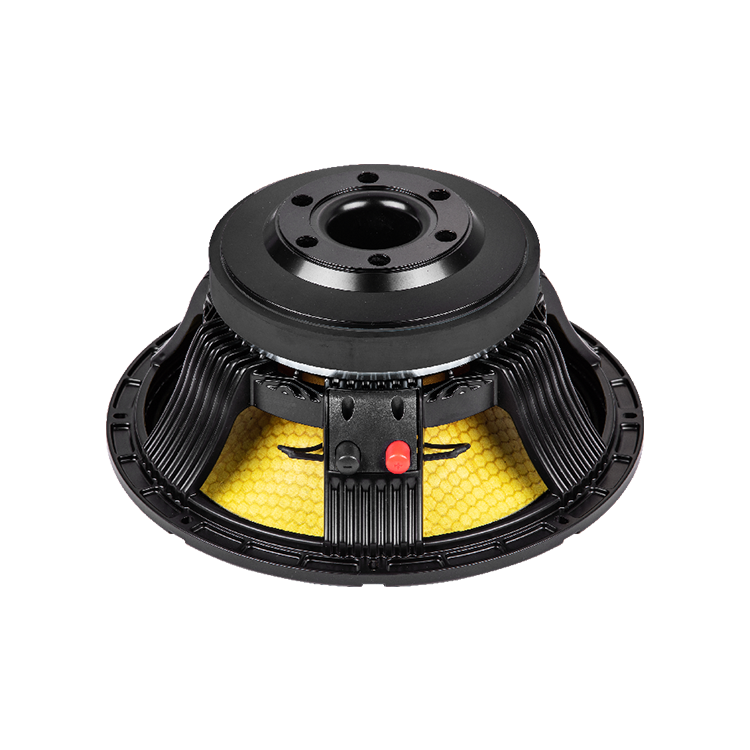

W-12-294A-8-86
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 315.5mm | Depth: | 140mm | |
| Bolt circle diameter: | 299mm | Flange and Gasket: | 14mm | |
| Baffle cutout diameter: | 238.5mm | Net weight: | 7.9kg | |
| Shipping box (single carton box): | 340x340x210mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter: | 12Inch | Voice coil material: | Inside/Outside 1 layercu | |
| Nominal impedance: | 8Ω | Former material: | BAF | |
| DC resistance: | 5.3Ω | Winding depth: | 17mm | |
| Nominal power handling: | 400W | T yoke: | 20mm | |
| Continuous power handling: | 800W | Plate : | 10mm | |
| Sensitivity (1W/1m): | 95± 2dB | Magnet: | 190*95*23(85OZ) | |
| Frequency range (-10dB max): | 60-2600Hz | Basket: | Cast aluminium | |
| Voice coil diameter: | 86.5mm | Midrange & Tweeter: |
THIELE & SMALL PARAMETERS
| Fo: | 63Hz | Cms: | 76.89u M/N | Qms: | 9.1 | No: | 0.0159 | |||
| Revc: | 5.3Ω | Mmd: | 73.59m Kg | Qes: | 0.48 | Xmax: | ±4mm | |||
| Sd: | 53.09m㎡ | Mms: | 80.62g | Qts: | 0.46 | |||||
| Vas: | 30.77L | Bl: | 18.73N/A | Levc: | 772.926m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
