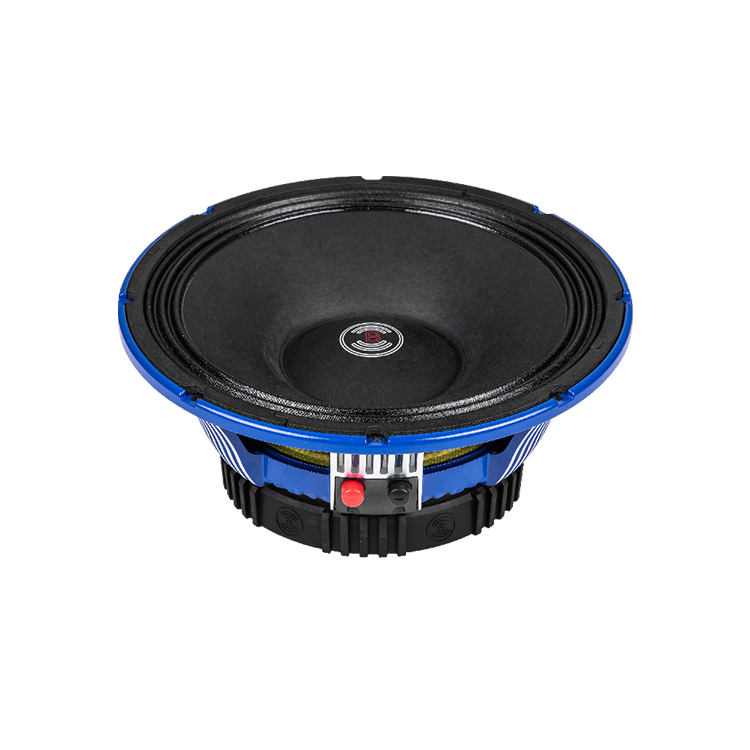

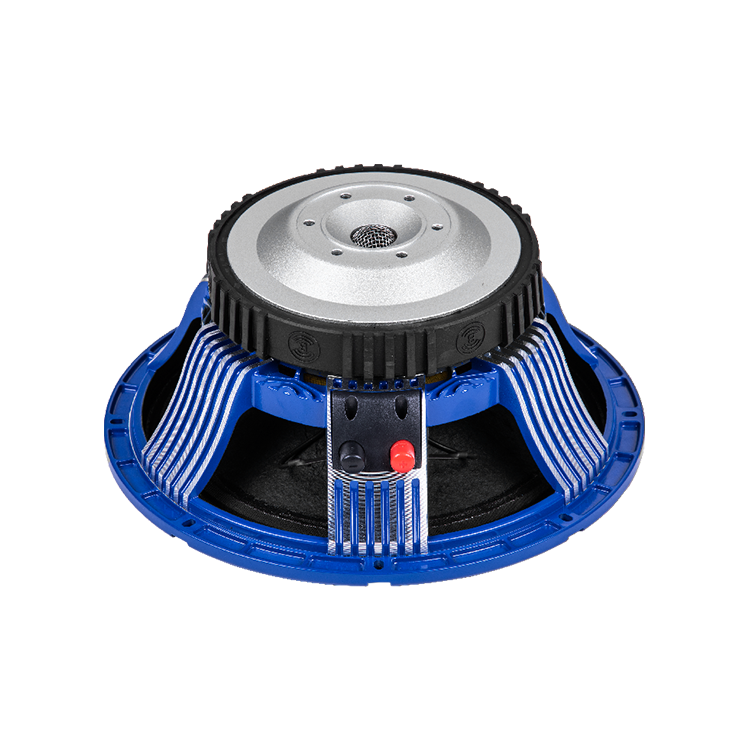

W-12-268A-8-75
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 315.5mm | Depth: | 133mm | |
| Bolt circle diameter: | 299mm | Flange and Gasket: | 20mm | |
| Baffle cutout diameter: | 238.5mm | Net weight: | 7.5kg | |
| Shipping box (single carton box): | 325x325x175mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter : | 12Inch | Voice coil material : | I/O 1 LayerCu | |
| Nominal impedance: | 8Ω | Former material: | BAF | |
| DC resistance: | 5.6Ω | Winding depth: | 16mm | |
| Nominal power handling : | 350W | T yoke: | 15mm | |
| Continuous power handling: | 700W | Plate : | 8mm | |
| Sensitivity (1W/1m) : | 97± 2dB | Magnet: | 70oz | |
| Frequency range (-10dB max): | 50-3500Hz | Basket: | Cast aluminium | |
| Voice coil diameter: | 75.5mm |
THIELE & SMALL PARAMETERS
| Fo: | 53Hz | Cms: | 147.39u M/N | Qms: | 7.43 | No: | 0.0213 | |||
| Revc: | 5.6Ω | Mmd: | 52.25m Kg | Qes: | 0.419 | Xmax: | ±4mm | |||
| Sd: | 53.09m㎡ | Mms: | 59.29g | Qts: | 0.395 | |||||
| Vas: | 58.99L | Bl: | 16.45N/A | Levc: | 634.25m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
