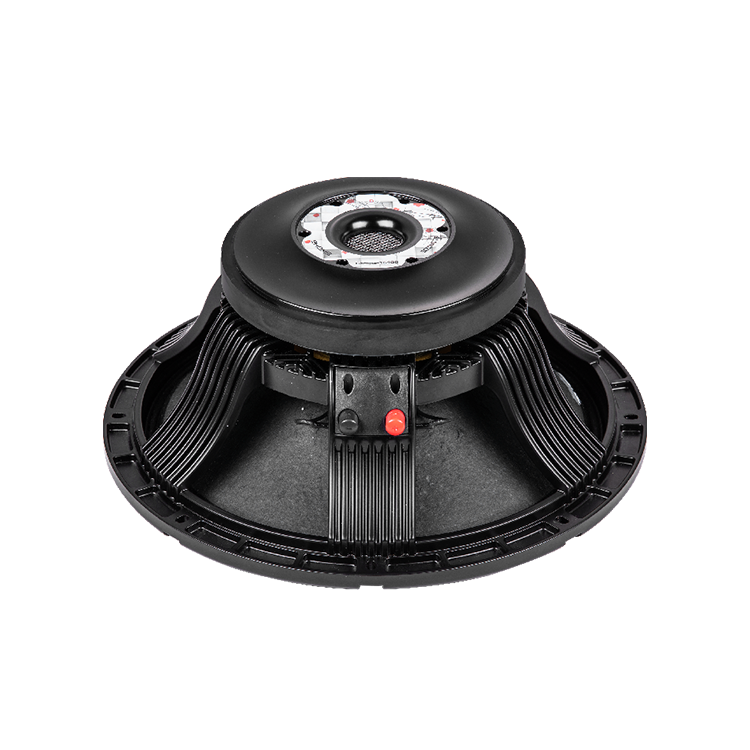

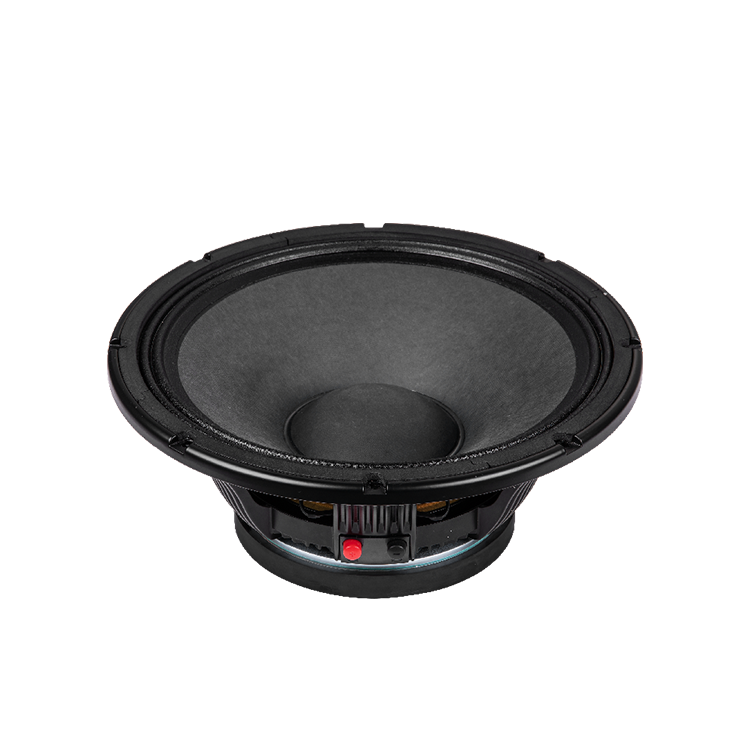

W-12-252A-8-75
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 315.5mm | Depth: | 126mm | |
| Bolt circle diameter: | 299mm | Flange and Gasket: | 16mm | |
| Baffle cutout diameter: | 238.5mm | Net weight: | 7.3kg | |
| Shipping box (single carton box): | 340x340x210mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter : | 12Inch | Voice coil material: | Inside/Outside 1 layercu | |
| Nominal impedance: | 8Ω | Former material: | TIL | |
| DC resistance: | 5.6Ω | Winding depth : | 17mm | |
| Nominal power handling : | 350W | T yoke: | 15mm | |
| Continuous power handling: | 700W | Plate: | 10mm | |
| Sensitivity (1W/1m) : | 98± 2dB | Magnet: | 190*85*20(80OZ) | |
| Frequency range (-10dB max): | 52-3500Hz | Basket: | Cast aluminium | |
| Voice coil diameter: | 75.5mm | Midrange & Tweeter: |
THIELE & SMALL PARAMETERS
| Fo: | 52Hz | Cms: | 148.27u M/N | Qms: | 8.54 | No: | 0.0299 | |||
| Revc: | 5.6Ω | Mmd: | 54.5m Kg | Qes: | 0.28 | Xmax: | ±4mm | |||
| Sd: | 53.09m㎡ | Mms: | 61.53g | Qts: | 0.27 | |||||
| Vas: | 59.35L | Bl: | 20.14N/A | Levc: | 870.02m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
