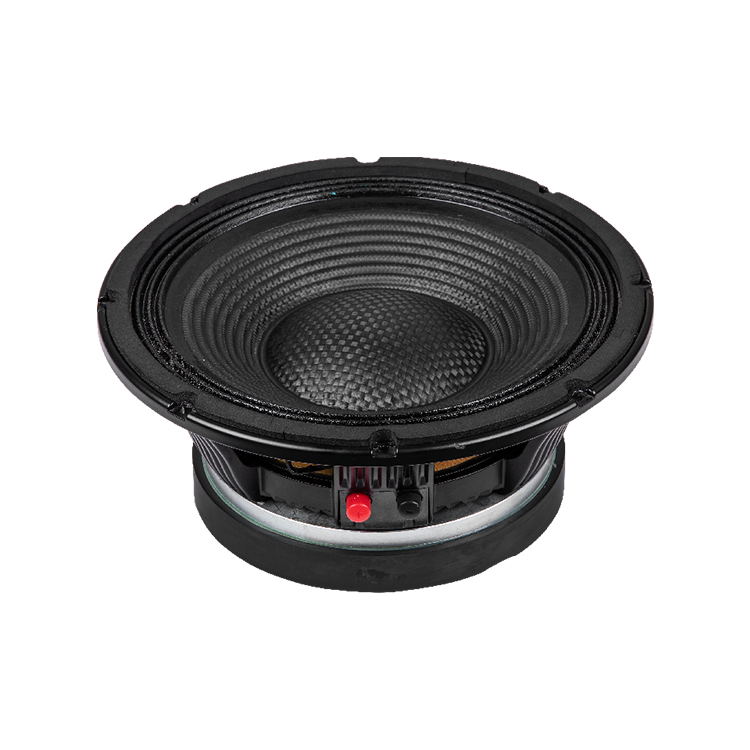

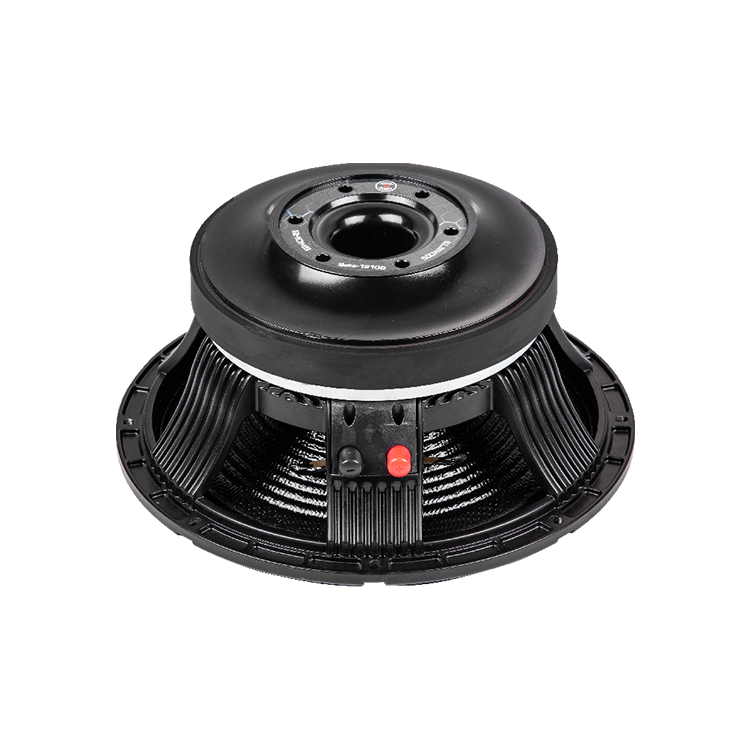

W-12-249A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 315.5mm | Depth: | 143mm | |
| Bolt circle diameter: | 299mm | Flange and Gasket: | 15mm | |
| Baffle cutout diameter: | 238.5mm | Net weight: | 11.15kg | |
| Shipping box (single carton box): | 340x340x210mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter : | 12Inch | Voice coil material: | Inside/Outside 1 layercu | |
| Nominal impedance: | 8Ω | Former material: | BAF | |
| DC resistance: | 5.6Ω | Winding depth : | 22mm | |
| Nominal power handling : | 600W | T yoke: | 22mm | |
| Continuous power handling: | 1200W | Plate : | 12mm | |
| Sensitivity (1W/1m) : | 97± 2dB | Magnet: | 220*110*25(125OZ) | |
| Frequency range (-10dB max): | 52-2500Hz | Basket: | Cast aluminium | |
| Voice coil diameter: | 100mm | Midrange & Tweeter: |
THIELE & SMALL PARAMETERS
| Fo: | 52Hz | Cms: | 84.55u M/N | Qms: | 9.2 | No: | 0.0121 | |||
| Revc: | 5.6Ω | Mmd: | 100.17m Kg | Qes: | 0.37 | Xmax: | ±5mm | |||
| Sd: | 51.07m㎡ | Mms: | 106.81g | Qts: | 0.35 | |||||
| Vas: | 31.31L | Bl: | 23.09N/A | Levc: | 1.047m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
