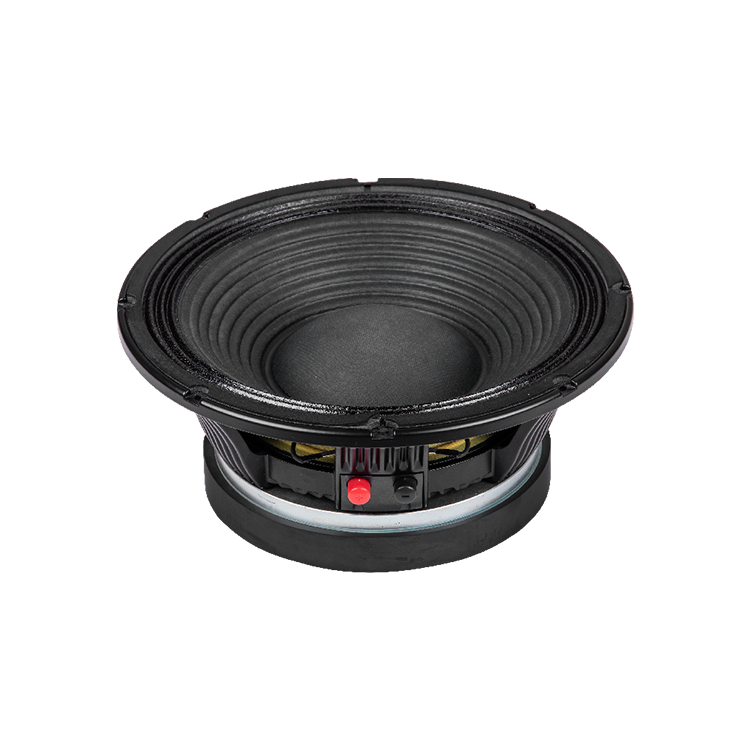

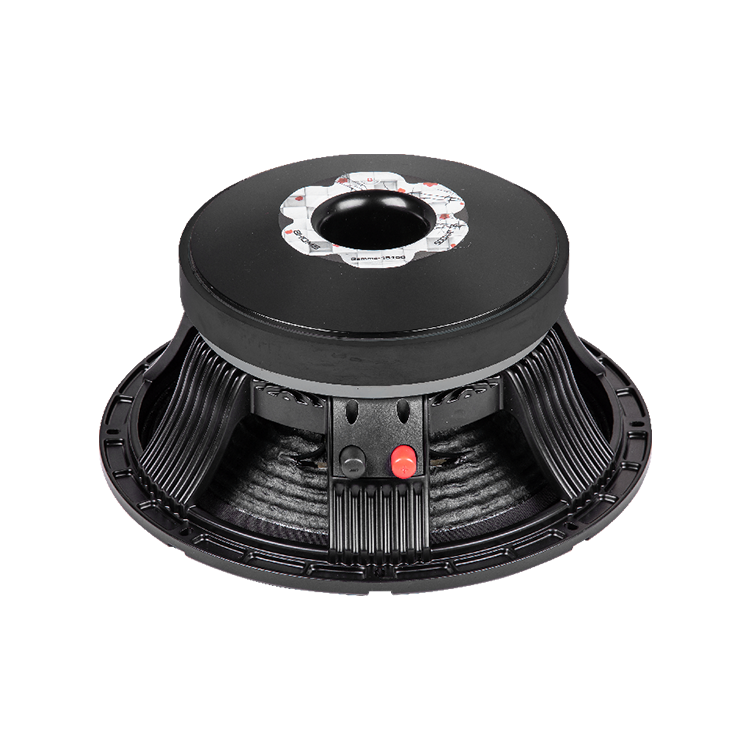

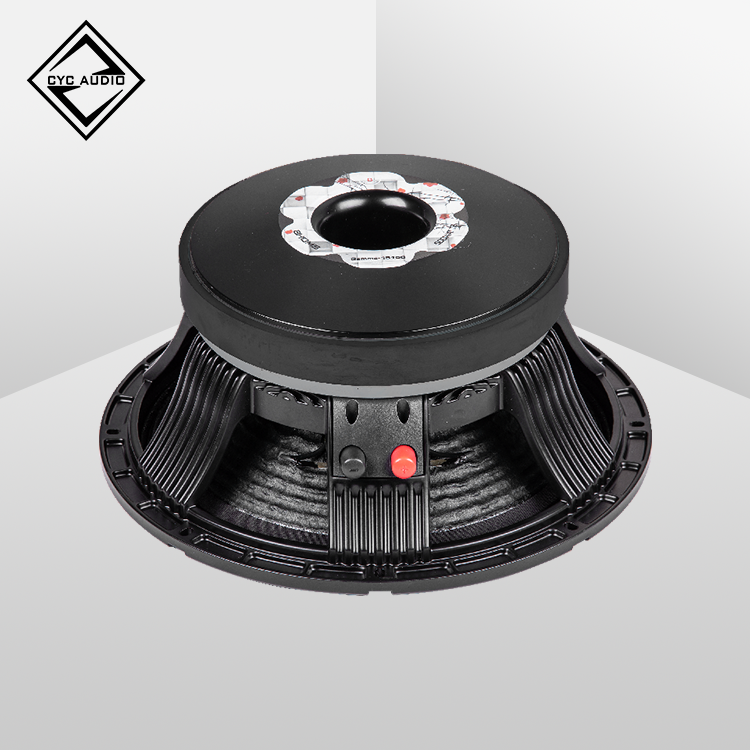

W-12-233A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 315.5mm | Depth: | 138mm | |
| Bolt circle diameter: | 299mm | Flange and Gasket: | 15mm | |
| Baffle cutout diameter: | 238.5mm | Net weight: | 11.2kg | |
| Shipping box (single carton box): | 340x340x210mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter : | 12Inch | Voice coil material： | Inside/Outside 1 layercu | |
| Nominal impedance: | 8Ω | Former material： | GF | |
| DC resistance: | 4.9Ω | Winding depth : | 24mm | |
| Nominal power handling : | 600W | T yoke: | 22mm | |
| Continuous power handling： | 1200W | Plate : | 12mm | |
| Sensitivity (1W/1m): | 97± 2dB | Magnet: | 220*110*25(125OZ) | |
| Frequency range (-10dB max): | 50-2000Hz | Basket: | Cast aluminium | |
| Voice coil diameter: | 100mm | Midrange & Tweeter: |
THIELE & SMALL PARAMETERS
| Fo： | 50Hz | Cms: | 104.12u M/N | Qms: | 6.86 | No： | 0.0196 | |||
| Revc: | 4.9Ω | Mmd: | 80.81m Kg | Qes: | 0.3 | Xmax： | ±5mm | |||
| Sd: | 53.09m㎡ | Mms: | 87.85g | Qts: | 0.28 | |||||
| Vas: | 41.6L | Bl: | 21.76N/A | Levc： | 1.122m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
