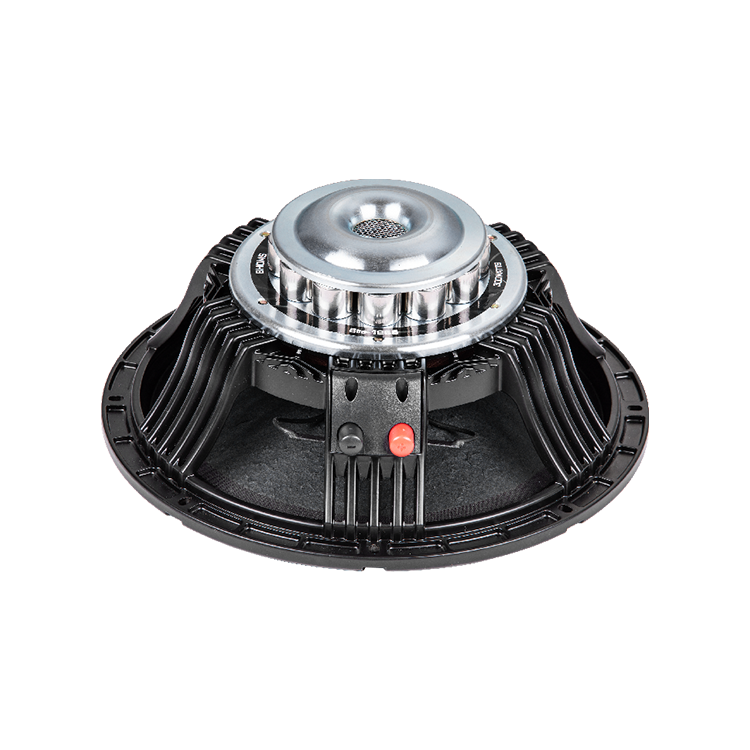

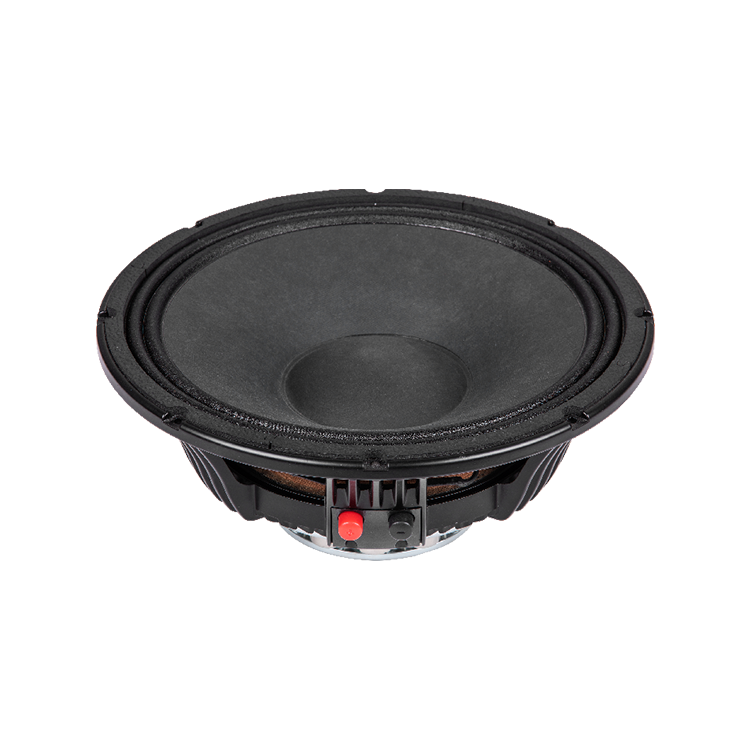

W-12-229A-8-86
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 315.5mm | Depth： | 124mm | |
| Bolt circle diameter： | 299mm | Flange and Gasket： | 16mm | |
| Baffle cutout diameter： | 285.5mm | Net weight： | 5.8kg | |
| Shipping box (single carton box)： | 340x340x210mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 12Inch | Voice coil material： | Inside/Outside 1 layerCCAW | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.3Ω | Winding depth： | 15mm | |
| Nominal power handling ： | 400W | T yoke： | 15.5mm | |
| Continuous power handling： | 800W | Plate： | 10mm | |
| Sensitivity (1W/1m) ： | 97.4± 2dB | Magnet： | NDFEB | |
| Frequency range (-10dB max)： | 65-3200Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 86.5mm | Midrange & Tweeter： |
THIELE & SMALL PARAMETERS
| Fo： | 65Hz | Cms： | 91.13u M/N | Qms： | 3.22 | No： | 0.0345 | |||
| Revc： | 5.3Ω | Mmd： | 60.58m Kg | Qes： | 0.33 | Xmax： | ±3mm | |||
| Sd： | 53.09m㎡ | Mms： | 58.28g | Qts： | 0.3 | |||||
| Vas： | 36.47L | Bl： | 19.93N/A | Levc： | 558.791m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
