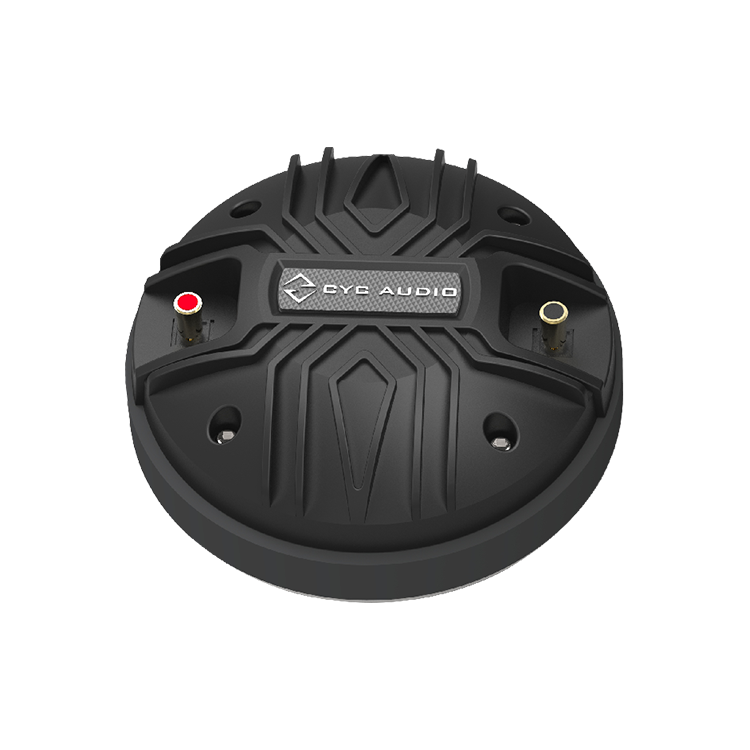

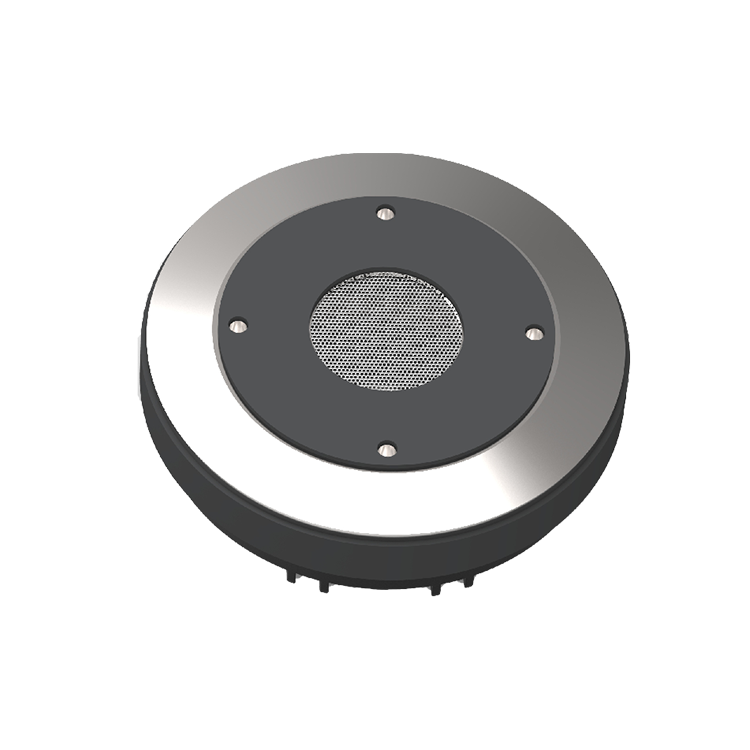

CTW-7261S
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | Φ170mm | Mounting Type： | bolting | |
| Baffle cutout diameter: | 170mm | Total depth： | 76mm | |
| Throat Diameter： | 50(2″)mm | Net weight: | 4.65kg | |
| Shipping box (1 PCS carton box)： | 224mmx224mmx128mm |
ELECTRICAL SPECIFICATIONS
| Nominal impedance: | 8Ω | Former material: | katpon | |
| DC resistance: | 6.2Ω | Winding depth: | 2.6mm | |
| Nominal power handling : | 80W | T yoke: | 8mm | |
| Continuous power handling: | 120W | Plate: | 6.9mm | |
| Sensitivity (1W/1m) : | 108 ± 2dB | Magnet; | ∮170*20mm(63oZ) | |
| Frequency range (-10dB max): | 800-20000 Hz | Magnet grade: | Strontium Ferrite Y30 | |
| Voice coil diameter: | 72.5mm | Diaphragm Material: | Ti | |
| Voice coil material: | Outside 2 LayerCCAW |
THIELE & SMALL PARAMETERS
| Fo: | 650Hz | Cms: | u M/N | Qms: | No: | |||||
| Revc: | 6.2Ω | Mmd: | m Kg | Qes: | Xmax: | mm | ||||
| Sd: | m M2 | Mms: | g | Qts: | ||||||
| Vas: | L | Bl: | N/A | Levc: | u H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)xmax=(Winding depth -Plate)/2
