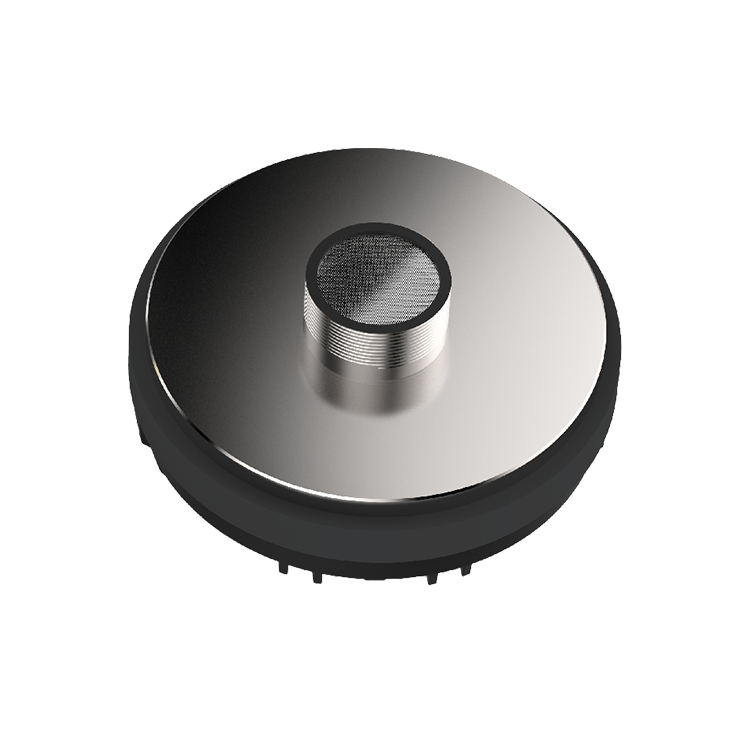

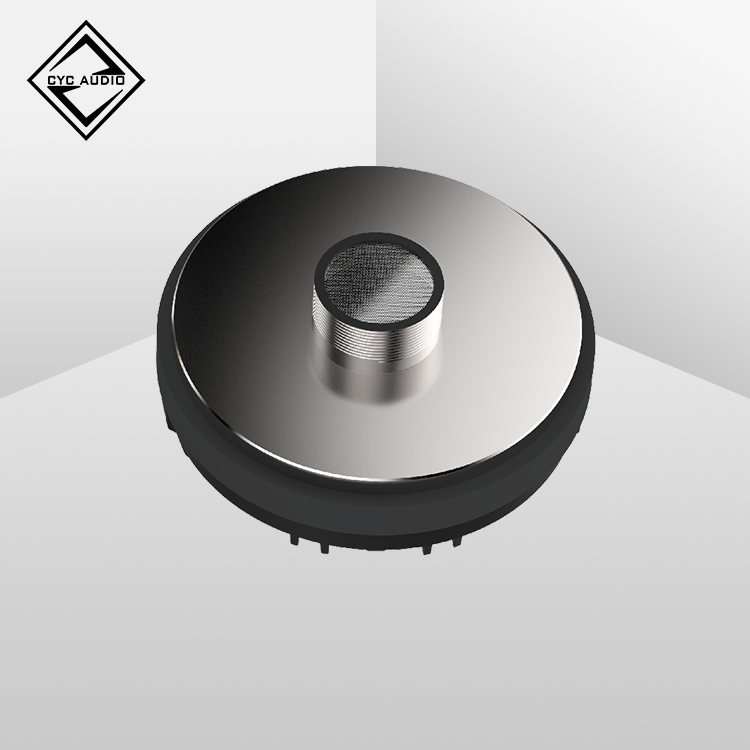

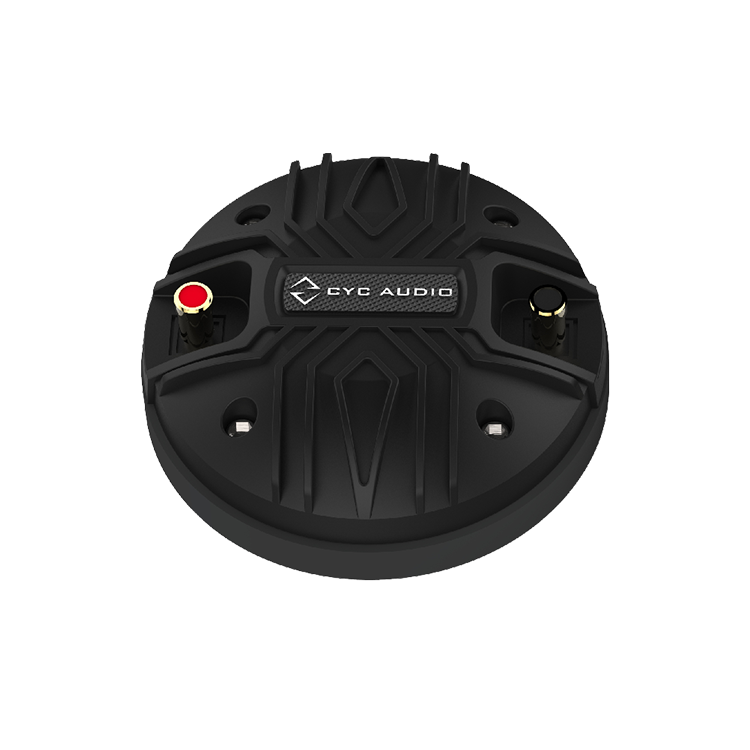

CTW-4461S
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | Φ115mm | Mounting Type : | Screw onmm | |
| Baffle cutout diameter: | 115mm | Total depth: | 70mm | |
| Bolt circle diameter: | 34.4mm | Mounting depth: | 17mm | |
| Throat Diameter : | 25mm | Net weight: | 1.48kg | |
| Shipping box (1 PCS carton box): | 130x130x88mm |
ELECTRICAL SPECIFICATIONS
| Nominal impedance: | 8Ω | Former material : | katpon | |
| DC resistance: | 6.2Ω | Winding depth : | 2mm | |
| Nominal power handling : | 40W | T yoke: | 5mm | |
| Continuous power handling: | 70W | Plate: | 5mm | |
| Sensitivity (1W/1m): | 106± 2dB | Magnet: | ∮115*∮50*15mm (23.3oZ) | |
| Frequency range (-10dB max): | 1500-20000Hz | Magnet grade: | Strontium Ferrite Y30 | |
| Voice coil diameter: | 44.4mm | Diaphragm Material: | Ti | |
| Voice coil material: | Outside 2 Layer CCAW |
THIELE & SMALL PARAMETERS
| Fo: | 1500Hz | Cms: | u M/N | Qms; | No: | |||||
| Revc: | 6Ω | Mmd: | m Kg | Qes: | Xmax: | mm | ||||
| Sd: | m M2 | Mms: | g | Qts: | ||||||
| Vas: | L | Bl; | N/A | Levc; | u H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)xmax=(Winding depth -Plate)/2
