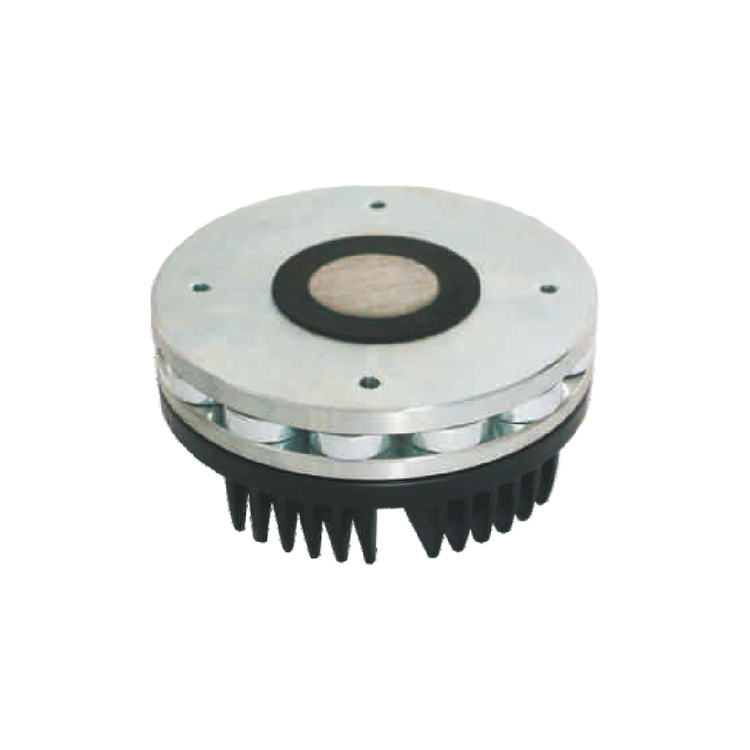

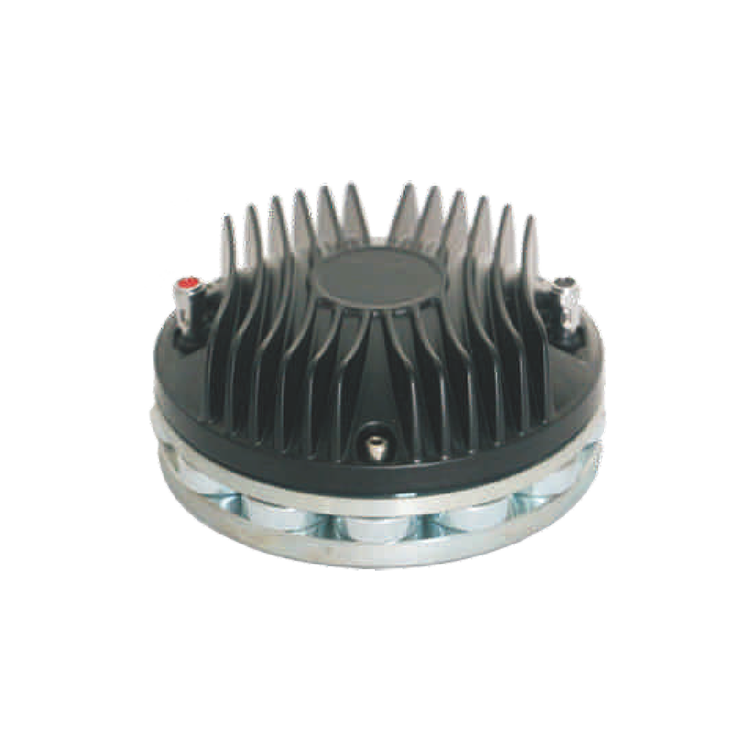

CTW-1460N
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 132.7mm | Throat Diameter： | 38(1.5″)mm | |
| Baffle cutout diameter： | 132.7mm | Mounting Type： | Bolt-on | |
| ￠ 102*4-M6mm | Net weight： | 3.2kg | ||
| Shipping box(1 PR carton box)： | 140X140X70mm |
ELECTRICAL SPECIFICATIONS
| Nominal impedance： | 8Ω | Voice coil material： | Outside 1 LayerCCAR | |
| DC resistance： | 6.5Ω | Former material： | katpon | |
| Nominal power handling： | 80W | Winding depth： | 3mm | |
| Continuous power handling： | 160W | T yoke： | 8.5mm | |
| Sensitivity (1W/1m)： | 108±2dB | Plate： | 9mm | |
| Frequency range (-10dB max)： | 800-20KHz | Magnet grade： | ￠ 25×8-N38H | |
| Voice coil diameter： | 74.4mm | Diaphragm Material： | Titanium |
THIELE & SMALL PARAMETERS
| Fo： | 800Hz | Cms： | u M/N | Qms： | No： | |||||
| Revc： | 6.2Ω | Mmd： | m Kg | Qes： | Xmax： | mm | ||||
| Sd： | m M2 | Mms： | g | Qts： | ||||||
| Vas： | L | Bl： | N/A | Levc： | uH |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
