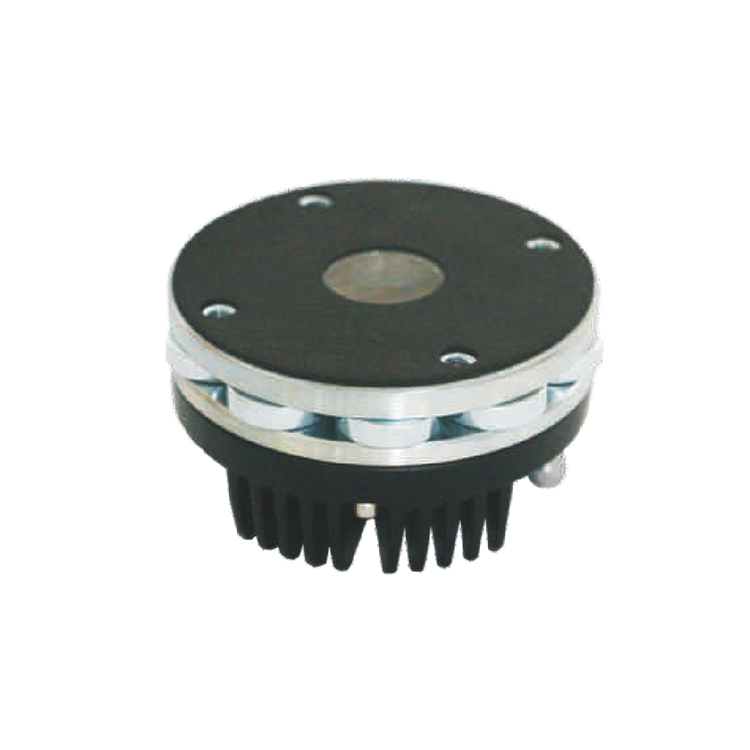

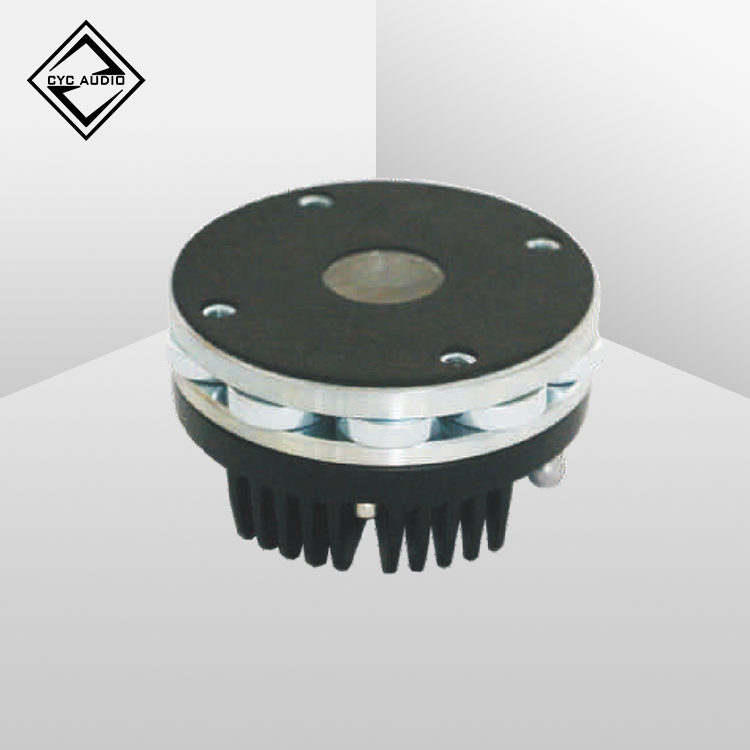

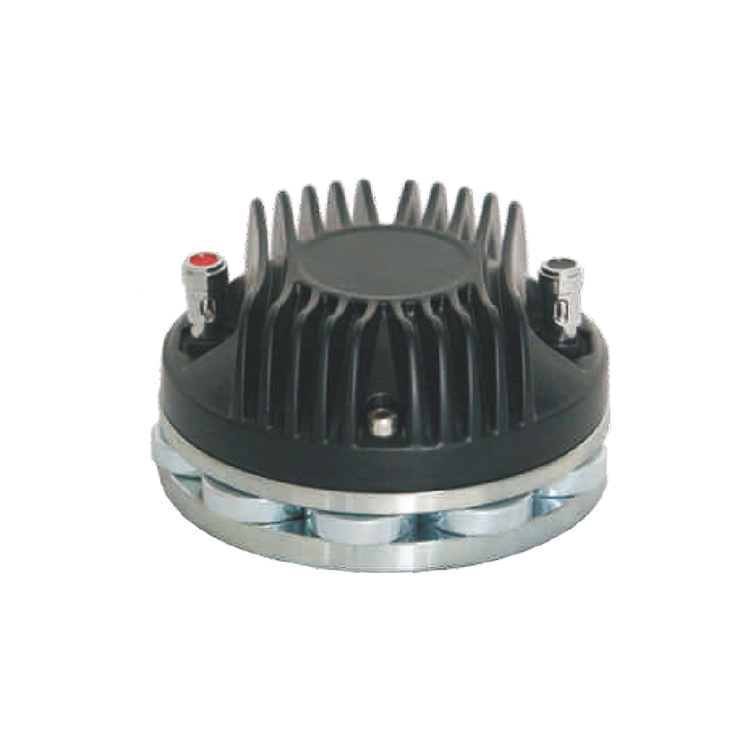

CTW-1070

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: CTW-1070

CTW-1070

40Watt Nominal Power Handling

44.4mm Voice coil diameter

1600Hz to 20K Hz Frequency Range

108dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 98mm Depth: 26(1″)mm
    Baolt circle diameter: 98mm Flange and Gasket: Bolt-on
    Baffle cutout diameter: ¢ 76*4-M5mm Net weight: 1.1kg
    Shipping box(1 PR carton box): 105X105X65mm

    ELECTRICAL SPECIFICATIONS

    Nominal impedance: Voice coil material: Outside 1 LayerCCAR
    DC resistance: 6.5Ω Former material: katpon
    Nominal power handling: 40W Winding depth: 2.4mm
    Continuous power handling: 80W T yoke: 7mm
    Sensitivity (1W/1m): 108±2dB Plate: 7mm
    Frequency range (-10dB max): 1600-20KHz Magnet grade: ¢ 23×6-N38H
    Voice coil diameter: 44.4mm Diaphragm Material: Titanium&PI

    THIELE & SMALL PARAMETERS

    Fo: 1200Hz Cms: u M/N Qms: No:
    Revc: 6.2Ω Mmd: m Kg Qes: Xmax:
    Sd: m M2 Mms: g Qts:
    Vas: L Bl: N/A Levc: uH




    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
